Grated channels
Fast Drain, Easy Drain, Build Drain
Discover all the GRATED CHANNELS
The best building solutions of water collection channels are offered by Eurogrifer in its selection of grated channels subdivided into Fast Drain, Easy Drain and Build Drain. Innovation and efficiency are the main features that make these products the best solution for every need. The prefabricated channels offered by Eurogrifer are systems designed with quality materials.
Grated channels

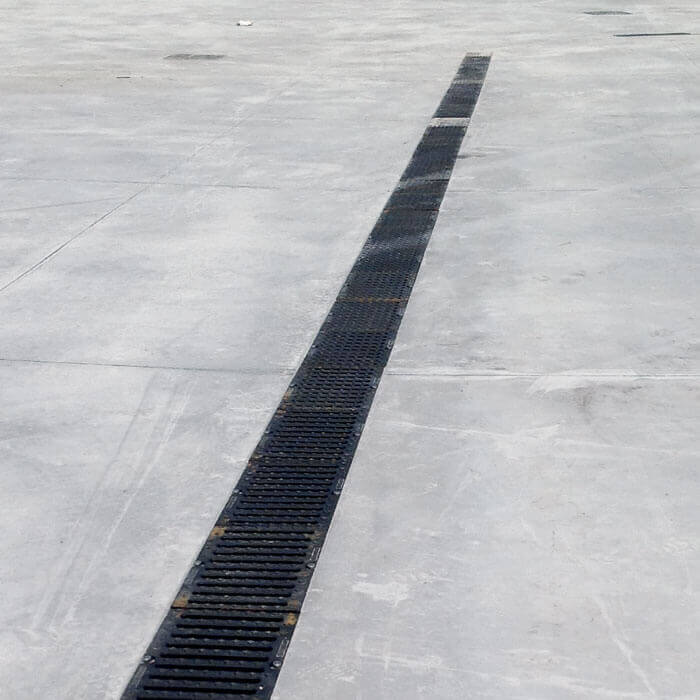

Normal and lowered Fast Drain channels
FAST DRAIN:
the effect of the inner lining of the channel in a plastic material (PP) coupled to the cement product during the production phase, offers great practicality in the moment of installation on site. Among the best qualities is the resistance to atmospheric and chemical agents together with high performance in terms of water flow. Time optimization, satisfaction and cost savings are the result.
There is a wide range of products suitable for all kinds of environments (civil, industrial and public) thanks to the combination with hot-galvanized steel and spheroidal cast iron gratings from the B125 to the D400 flow class.
There is a wide range of products suitable for all kinds of environments (civil, industrial and public) thanks to the combination with hot-galvanized steel and spheroidal cast iron gratings from the B125 to the D400 flow class.
STRUCTURE:
the normal and lowered Fast Drain channels are a new addition characterized by an inner lining in a plastic material coupled to the cement product during the production phase. A system which, thanks to its technology, ensures excellent performance in terms of water flow and resistance to atmospheric and chemical agents.
TYPES:
Eurogrifer offers a wide range of Fast Drain channels that can be adapted to any use, from the civil sector to the industrial and public one. There are 5 models of Fast Drain drainage systems; the 4 normal ones are subdivided into FD100N, FD150N, FD200N, FD250N; while the only lowered model is the FD250R.
FINISHES:
these drive-over channels are made of high-strength reinforced and vibrated concrete, with hot-galvanized steel profiles to contain the gratings and with the inner part lined with plastic material (PP) for a very low degree of roughness.
FASTENING:
the channel is supplied already assembled and offers great practicality in the on-site installation phase
Grated channels

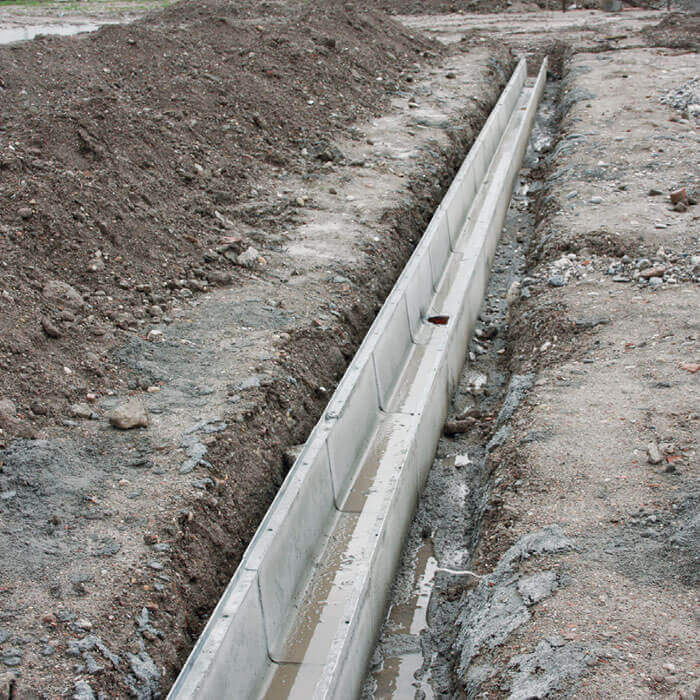

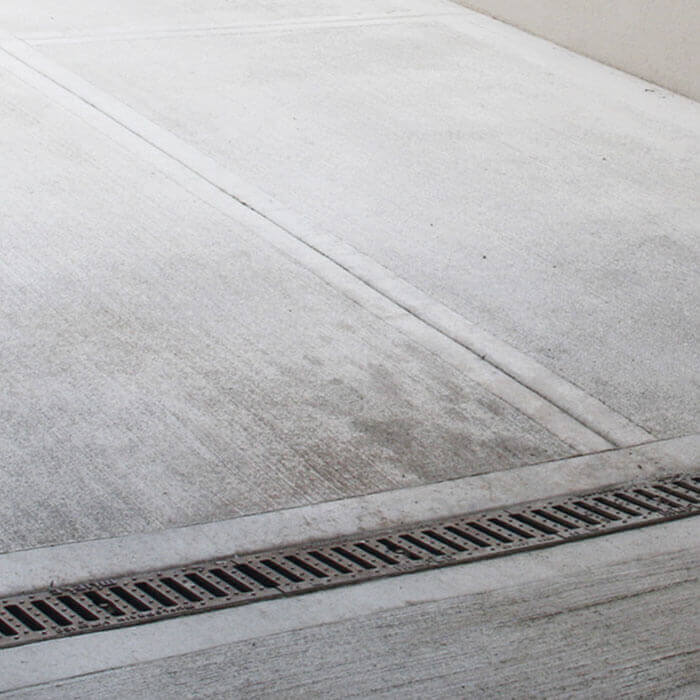

Normal and lowered Easy Drain channels
EASY DRAIN:
innovation translates into a product that has drastically reduced its weight to the advantage of on-site handling to facilitate operators in the sector who have difficulty with the heavy weights of the cumbersome structures. In fact, the concrete grated channel has always been used in the building industry, which is very heavy and cumbersome. This renewal also determines a reduction in transport costs and an increase in reliability, robustness and manoeuvrability.
STRUCTURE:
the normal and lowered Easy Drain channels are made of reinforced and vibrated cement. Research has meant that the weight has been drastically reduced over the years to the advantage of on-site handling, as well as obviously reducing transport costs.
TYPES:
there are 7 models of Easy Drain drainage systems; the 5 normal ones are subdivided in ED80N, ED100N, ED150N, ED200N, ED250N, ED300N, ED400N; while the 2 lowered ones are ED100R and ED250R. The wide range of products offered can be destined to different realizations, from public to industrial and private environments. Eurogrifer combines the right channel grating to each drainage channel.
FINISHES:
these models of water collection channels are made of high-strength 425 reinforced and vibrated concrete with ho-galvanized steel profiles to contain the gratings.
Grated channels

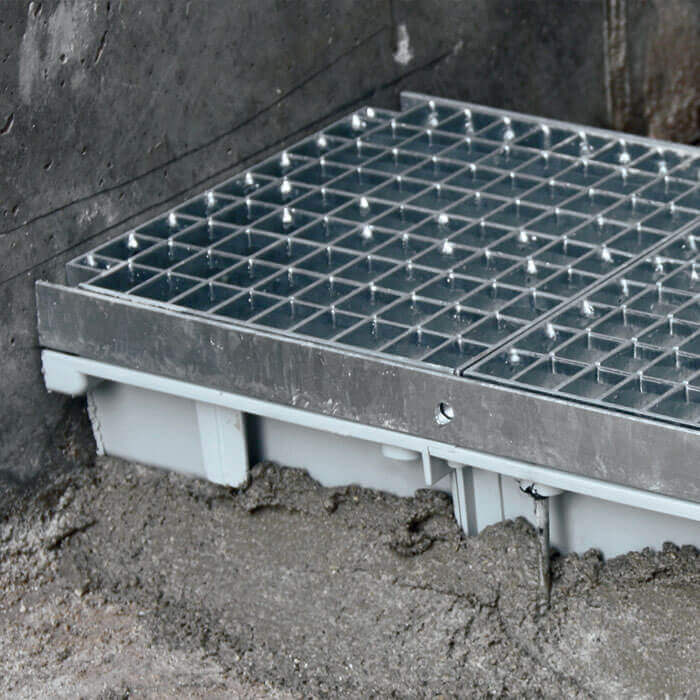

BUILD DRAIN:
the advantages in using this new channel can be summarized in lightness, strength, and simplicity during installation.
In fact, no handling machinery is needed. The channel is supplied already assembled with profiles for containment gratings and the plastic material (PP) module which, having male-female joints in the two heads, is very precise and fast to install on site.
In fact, no handling machinery is needed. The channel is supplied already assembled with profiles for containment gratings and the plastic material (PP) module which, having male-female joints in the two heads, is very precise and fast to install on site.
STRUCTURE:
the normal and lowered Build Drain channels are created for all installations where available space is limited, and work must be carried out to incorporate the connection with the building work.
TYPES:
the models of the Easy Drain drainage systems are BD100N, BD150N, BD200N, BD250N; while the only lowered model is BD250R. The wide range of products offered can be destined to different realizations, from public to industrial and private environments. Eurogrifer combines the right channel grating to each drainage channel.
FINISHES:
these models of water collection channels are made of plastic material (PP) for a very low degree of roughness and with hot-galvanized steel profiles to contain the gratings.
Grated channels
Instalment instructions and regulations
Diagram and essential notes for the general provisions regarding the installation according to the UNI EN 1433 standard on traffic classification. In addition, a brief description with suggestions for the correct installation of the grated channel.
The installation instructions include wording regarding
- the dimensions of the excavation,
- the construction of the work base,
- the installation methods of the channel,
- the finishing operations and the instructions for sealing the connection joints with the channels according to the regulations.
| Class | Strength | Field of use | |
|---|---|---|---|
 |
A 15 | 15 kN | light traffic areas, pedestrian walkways, cycle paths, balconies, terraces |
 |
B 125 | 125 kN | pavements, car parking areas, elevated parking lots |
 |
C 250 | 250 kN | roadsides, access to parking lots for all types of vehicles |
 |
D 400 | 400 kN | roadways, roadsides with heavy traffic |
Installation section type
