Modular fencing
The best combinations for each project.
Discover all MODULAR FENCING models
The modular fencing that Eurogrifer proposes, can have the standard hot-galvanized finish or upon request, with paints chosen from a variety of colours. Modular wrought iron fencing has 1500 mm spacing and available in three different heights:
- 930mm
- 1.130mm
- 1.430mm
The fastening solutions of modular fencing range from upright with lower bracket to be fastened, to the upright to be cemented. Modular fencing can be combined with universal gates, artistic gates and 1800s style gates.
In addition to being equipped with all the accessories and various components for fencing, at Eurogrifer you can find different types of modular fencing: from modular fencing with U-profiles to 1800s style fencing, then on to EKO fencing and fencing with modular mesh.
Fencing

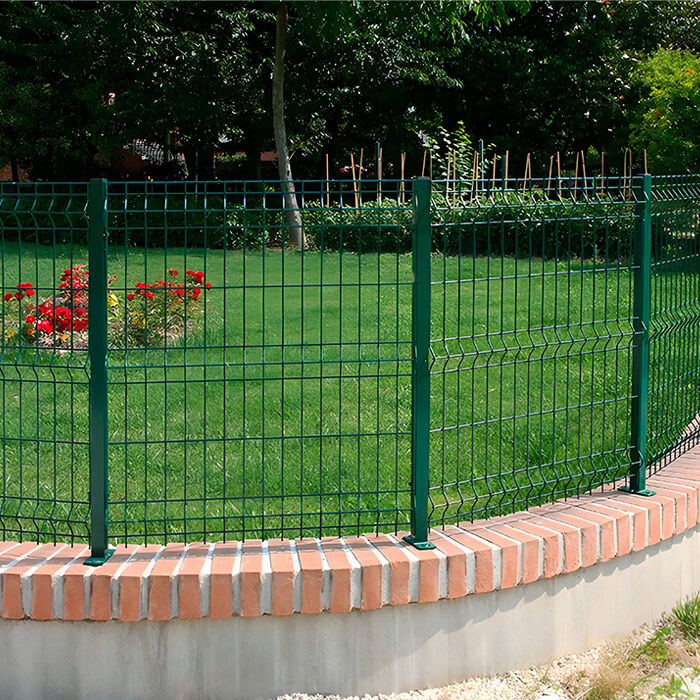

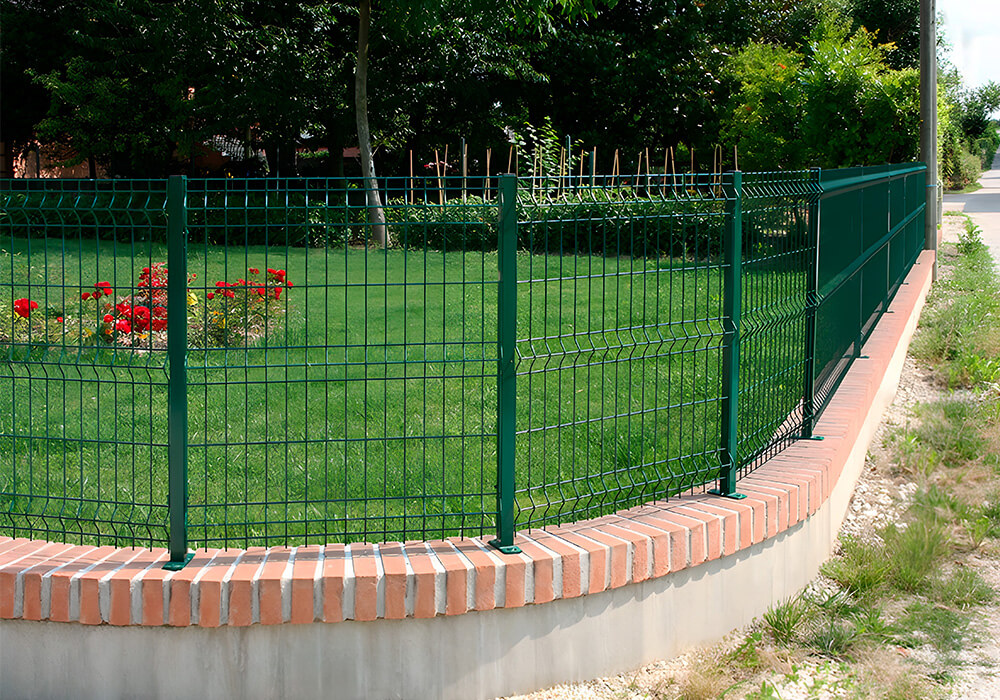

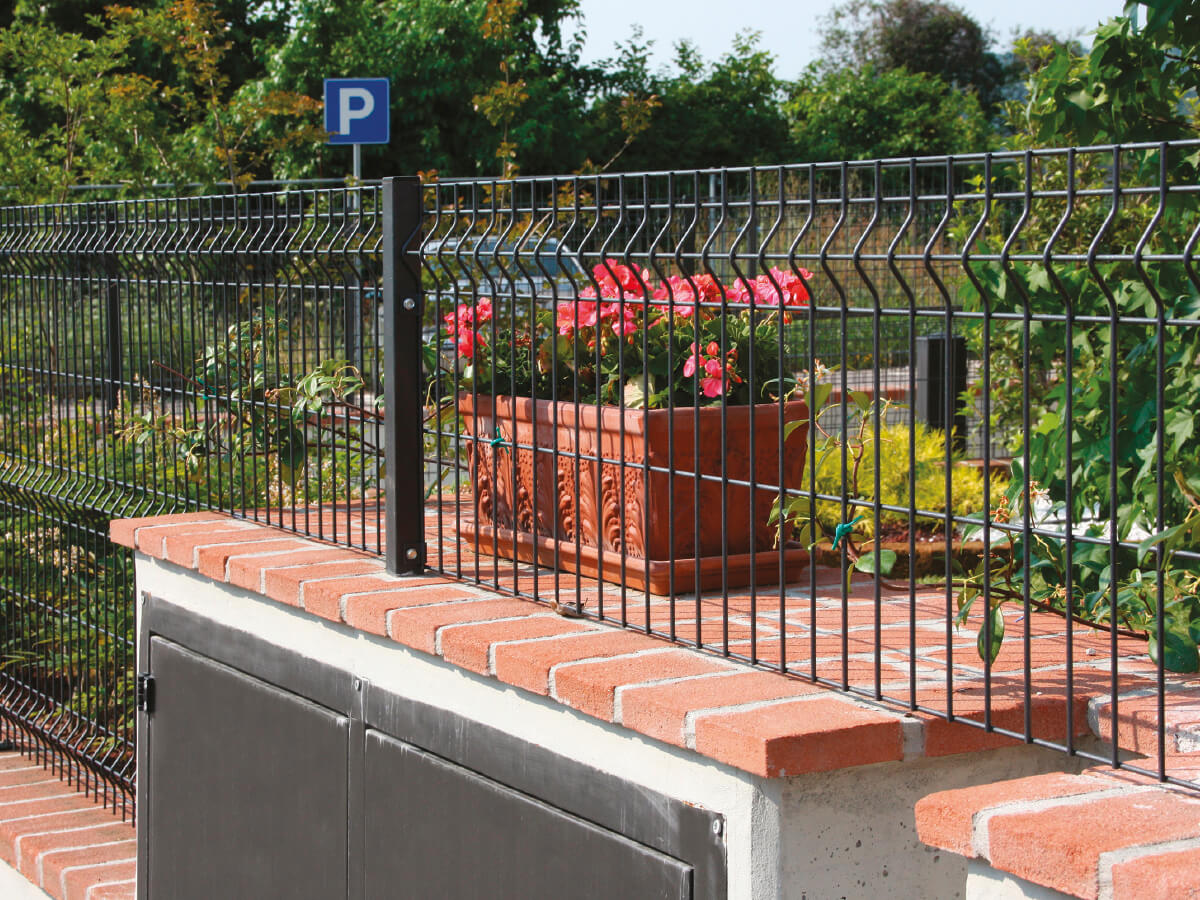

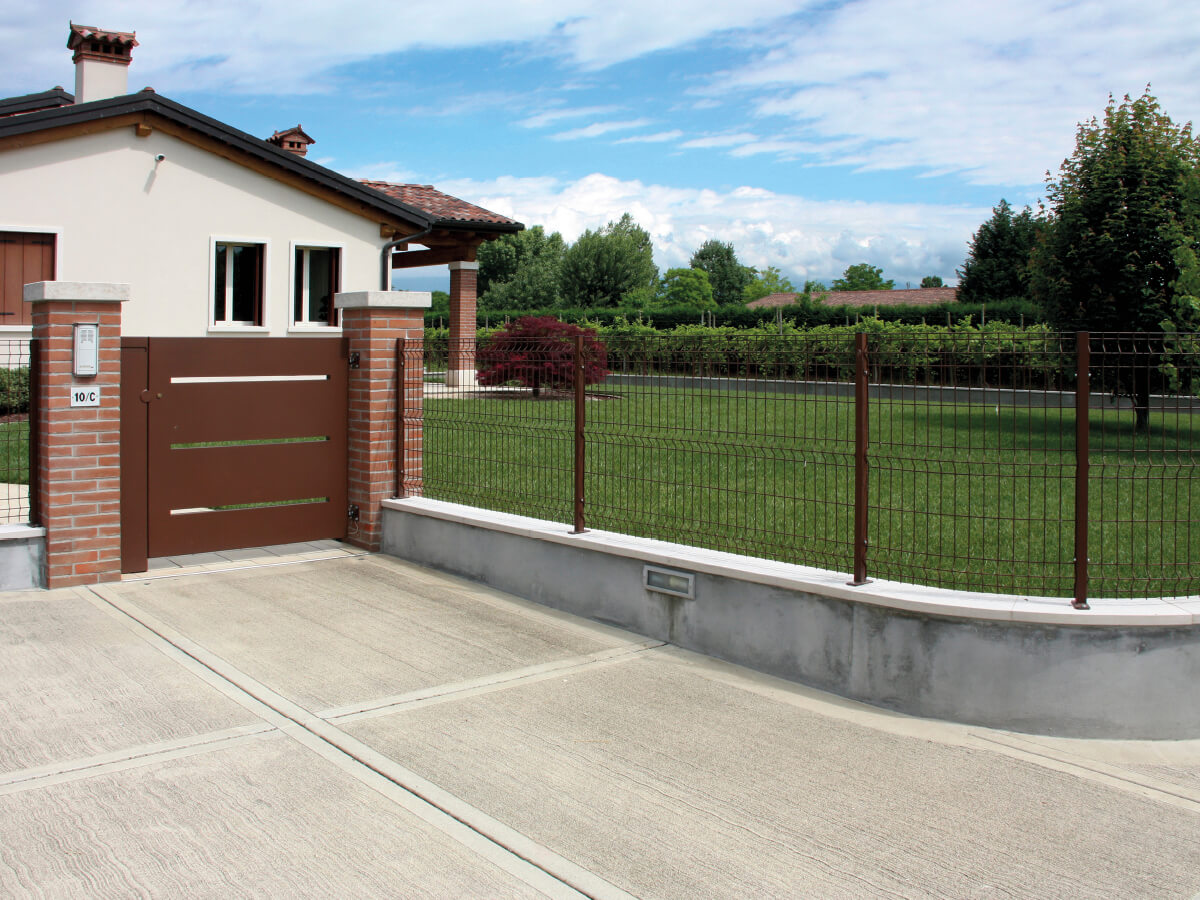

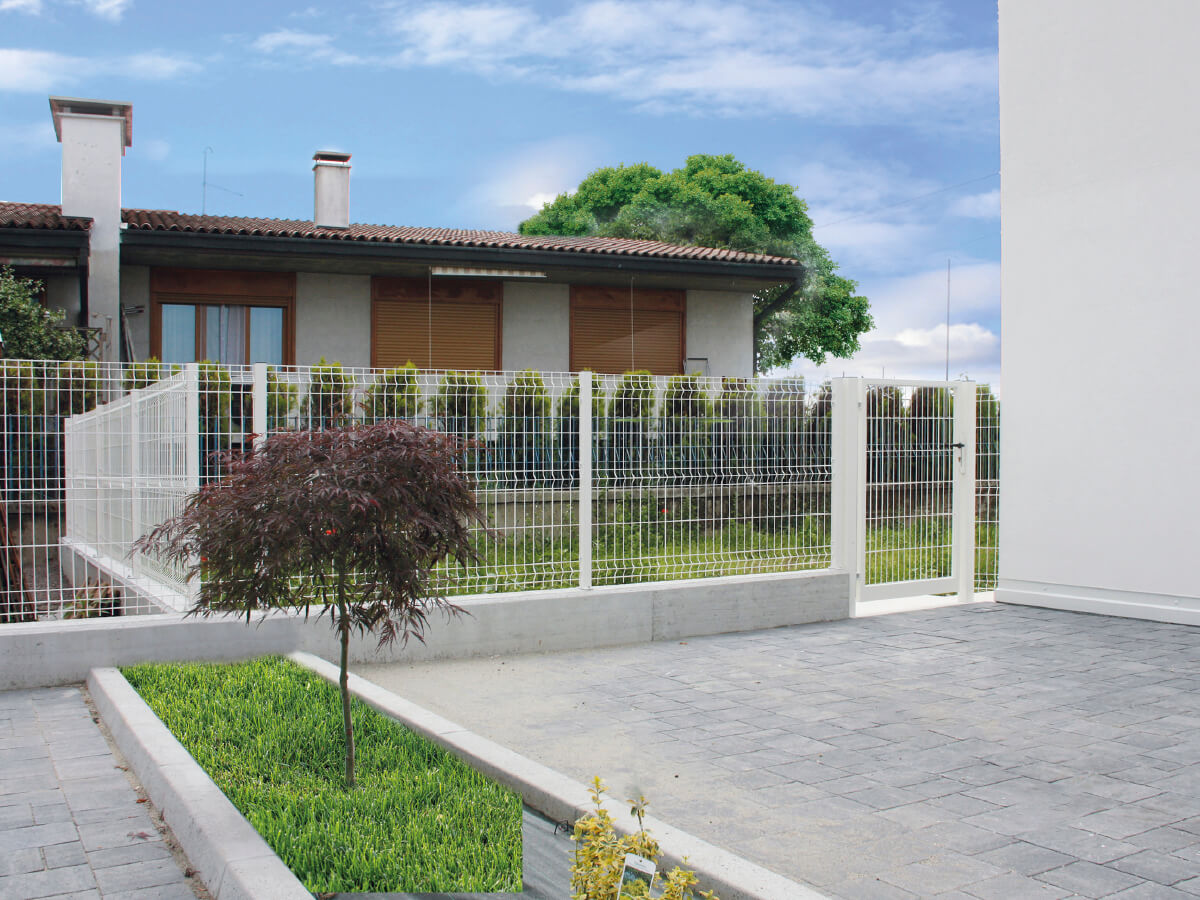

Refi
FINISHES:
Refi is a modular fencing system created for practical and simple installation. This fencing has been created to meet the requirements of those who want to achieve the maximum compromise between classic fencing and mesh fencing.
DIAMETER:
it has a length of 2000 mm and is available in six different heights. It is produced with 4.8mm nominal diameter wire (both horizontally and vertically) which forms a variable rectangular grid depending on the height of the panel. To ensure a high degree of robustness, the panel is made of various horizontal ribs, giving it a pleasant appearance.
FASTENING:
the panels have two types of 35x35 or 50x50 tubular uprights complete with lower welded plate with two slotted holes to fasten it to the base. The standard finish of the upright provides a top closure with a PP cap to be inserted by pressure.
COLOUR:
Refi articles are galvanized and painted using a thermosetting powder process to enhance the aesthetics of each component and to guarantee excellent durability. They are available in two standard colours: RAL 6005 green and micaceous dark grey.
Fencing

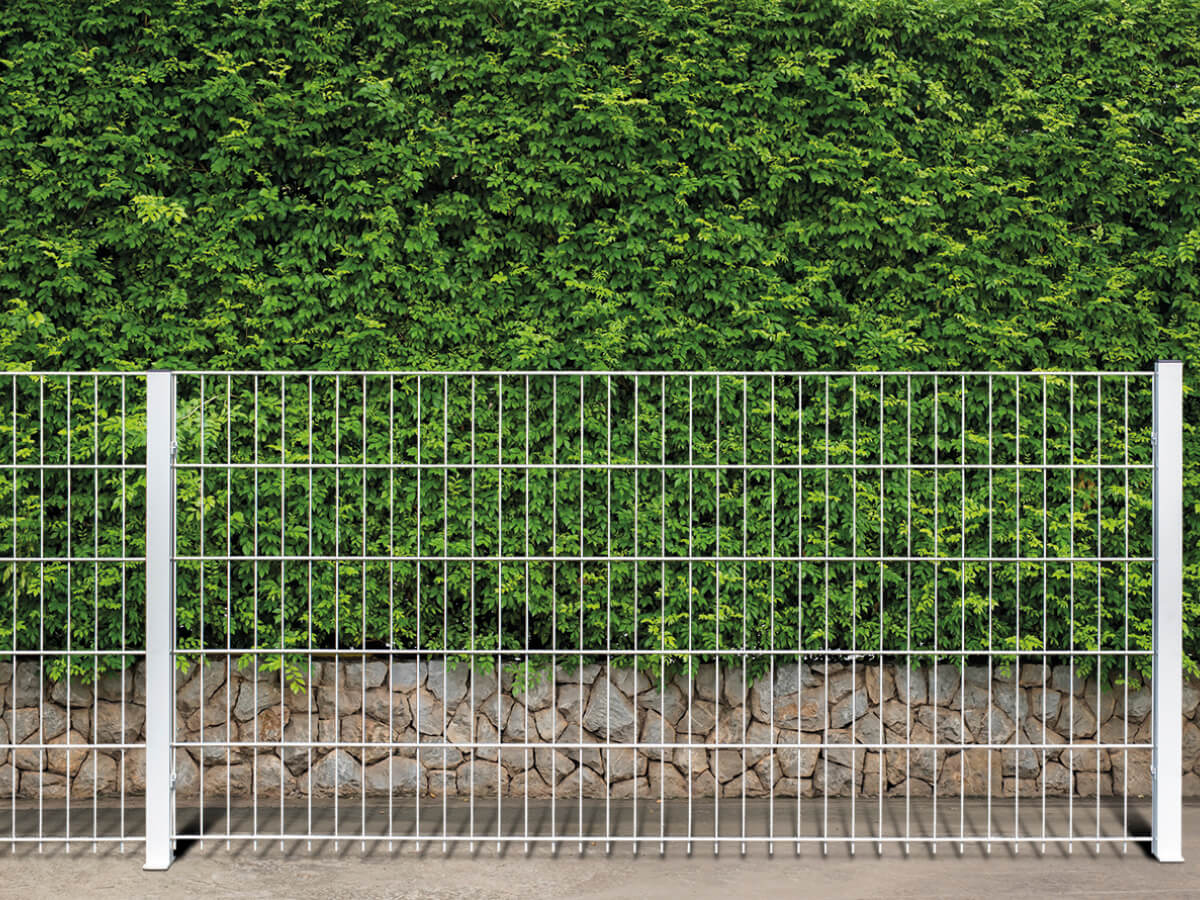

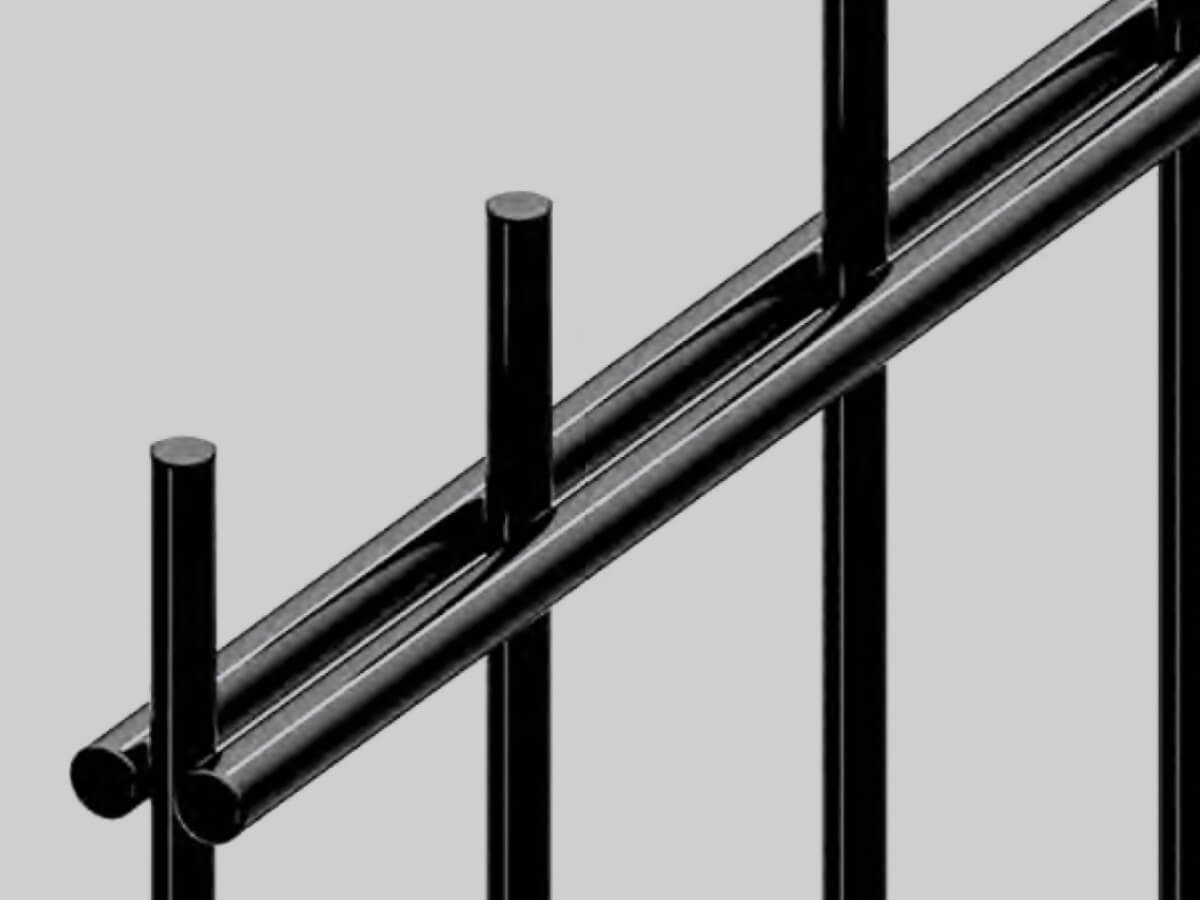

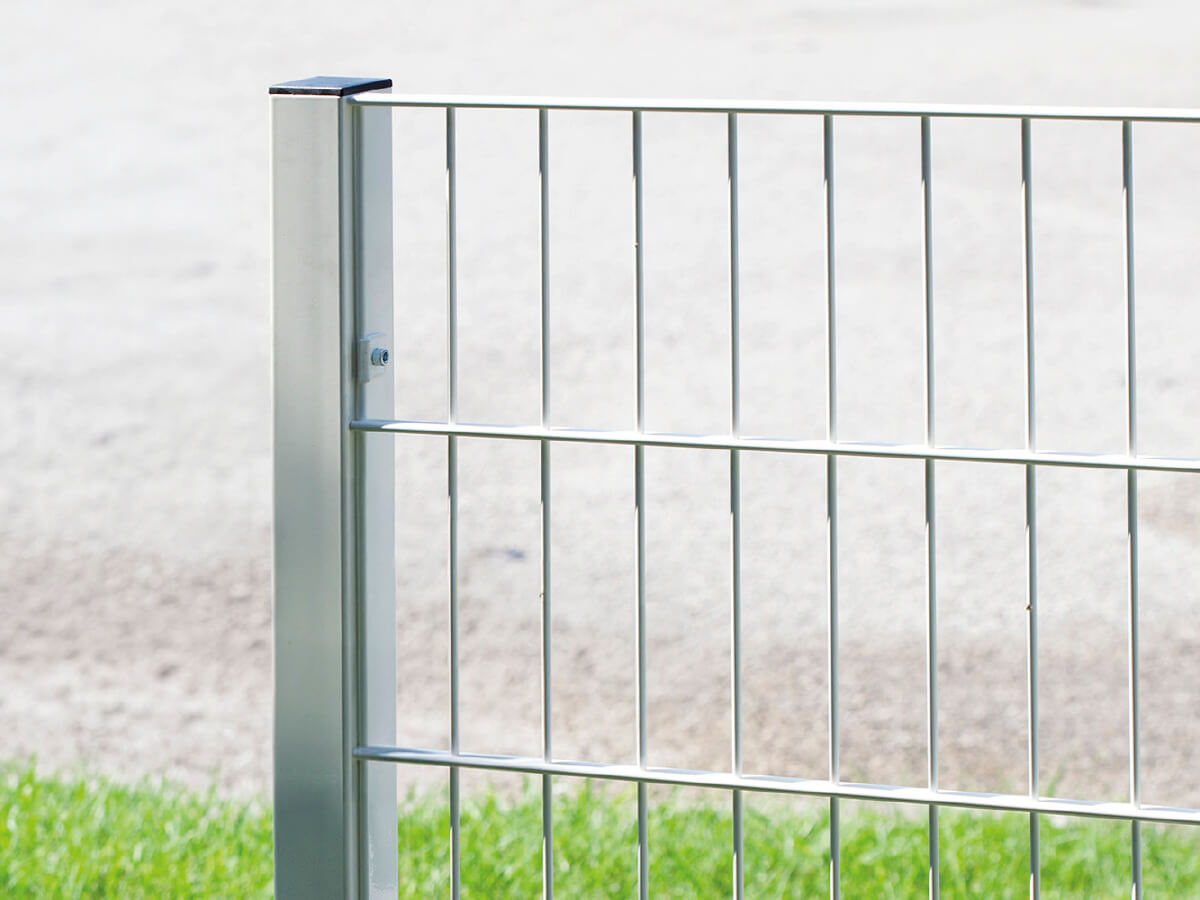

2D
2D is modular double-wire fencing characterised by robustness and strength. This fencing model is designed to meet the needs of those requiring a high level of security, with the guarantee of having an extremely durable product. It is possible to turn the panel upside down, showing either a smooth top profile or one with protruding spikes, in order to adapt to any industrial, public or private installation.
DIMENSIONS:
the 2D panel is 2000 mm long and is available in five different heights. It is produced with 5.0 mm diameter vertical wire and 6.0 mm diameter horizontal double wire, which form a rectangular mesh that varies according to the height of the panel.
FASTENING:
the 2D panel is supported by 50x50 mm tube uprights, complete with a welded bottom plate with two slotted holes for base fastening. Alternatively, a version for cement-fastening is available (only to order). The standard finish of the upright includes an upper closure by means of a PP cap to be pressure-fitted.
COLOUR:
2D items are available in 4 standard colours:
- RAL 6005 green
- Micaceous dark grey
- RAL 9010 semi-gloss white
- RAL 7035 semi-gloss light grey
Fencing

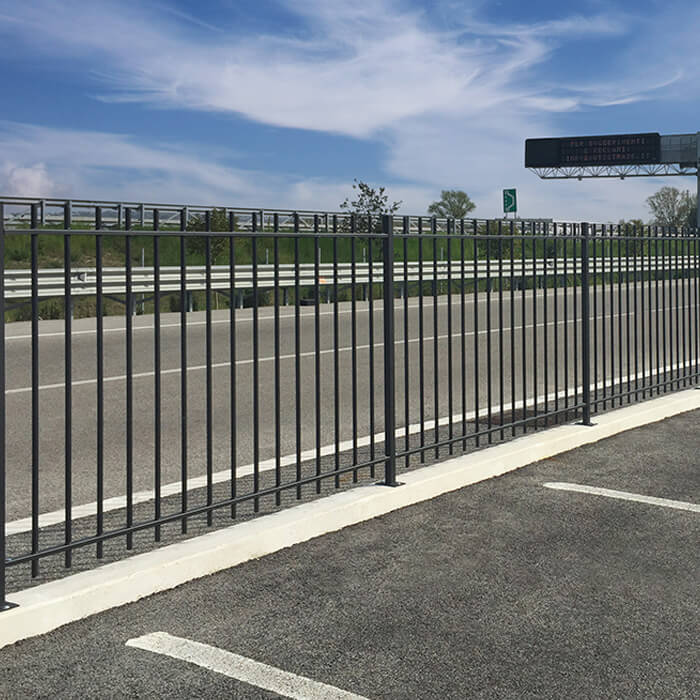

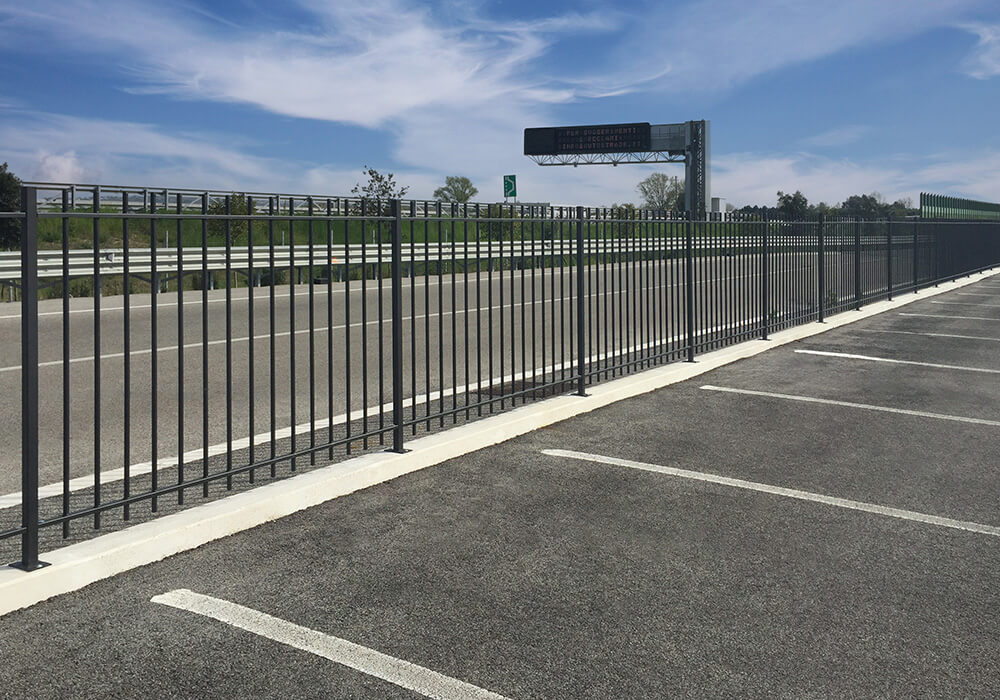

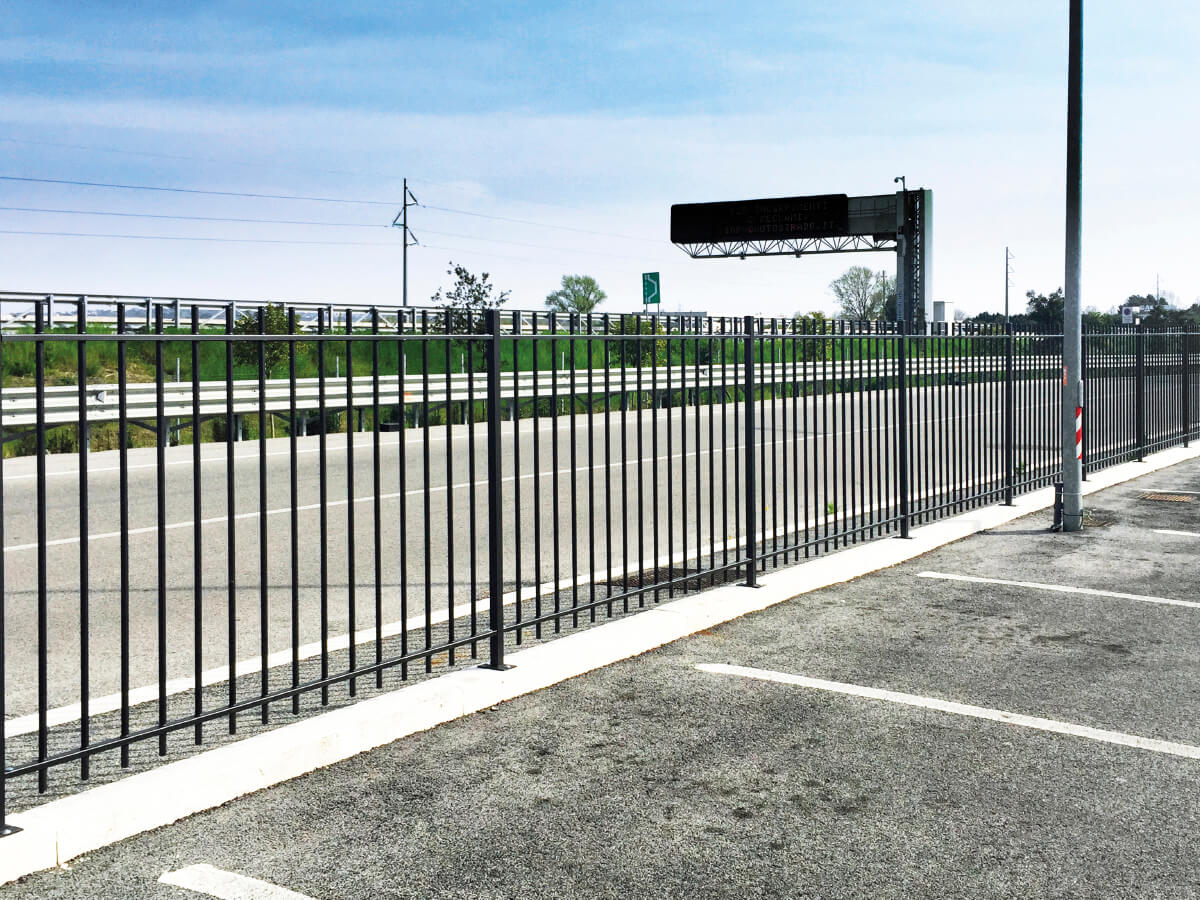

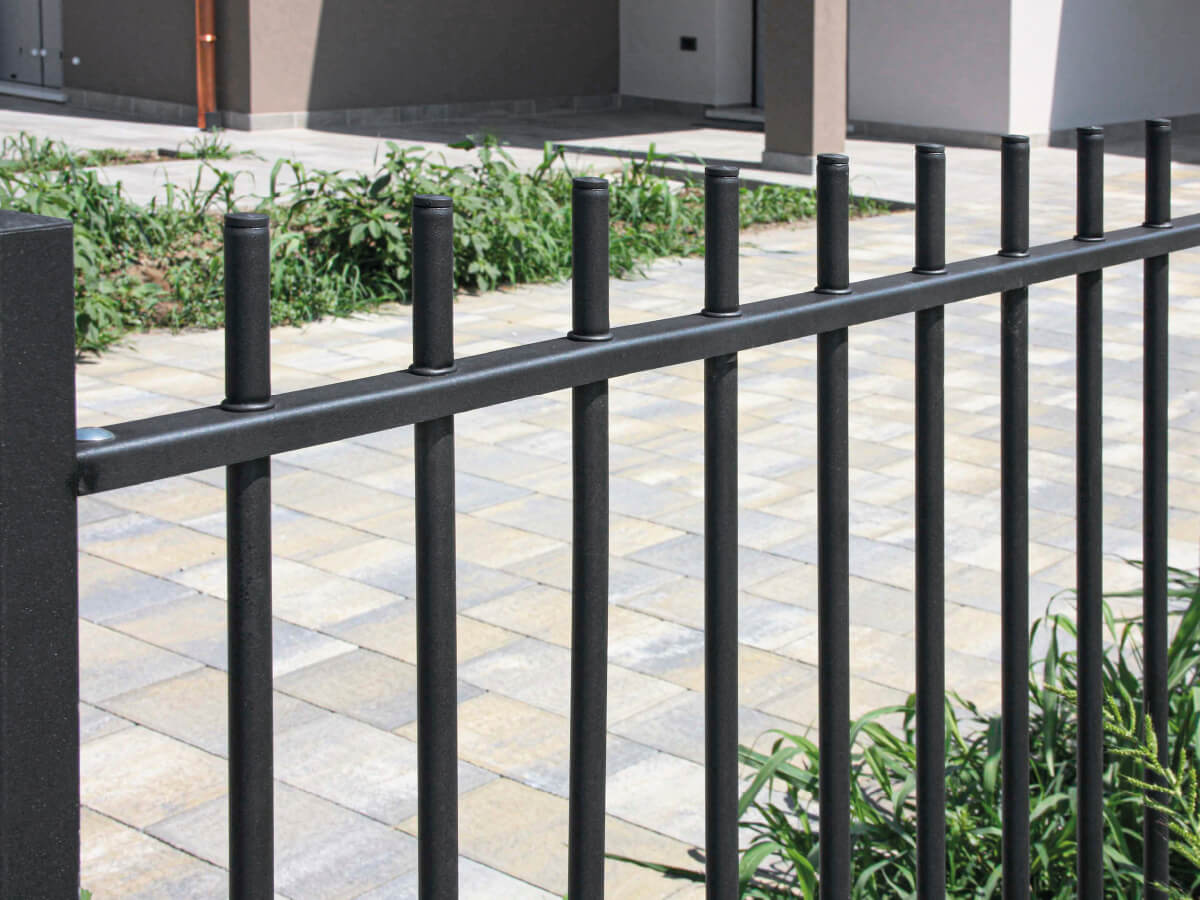

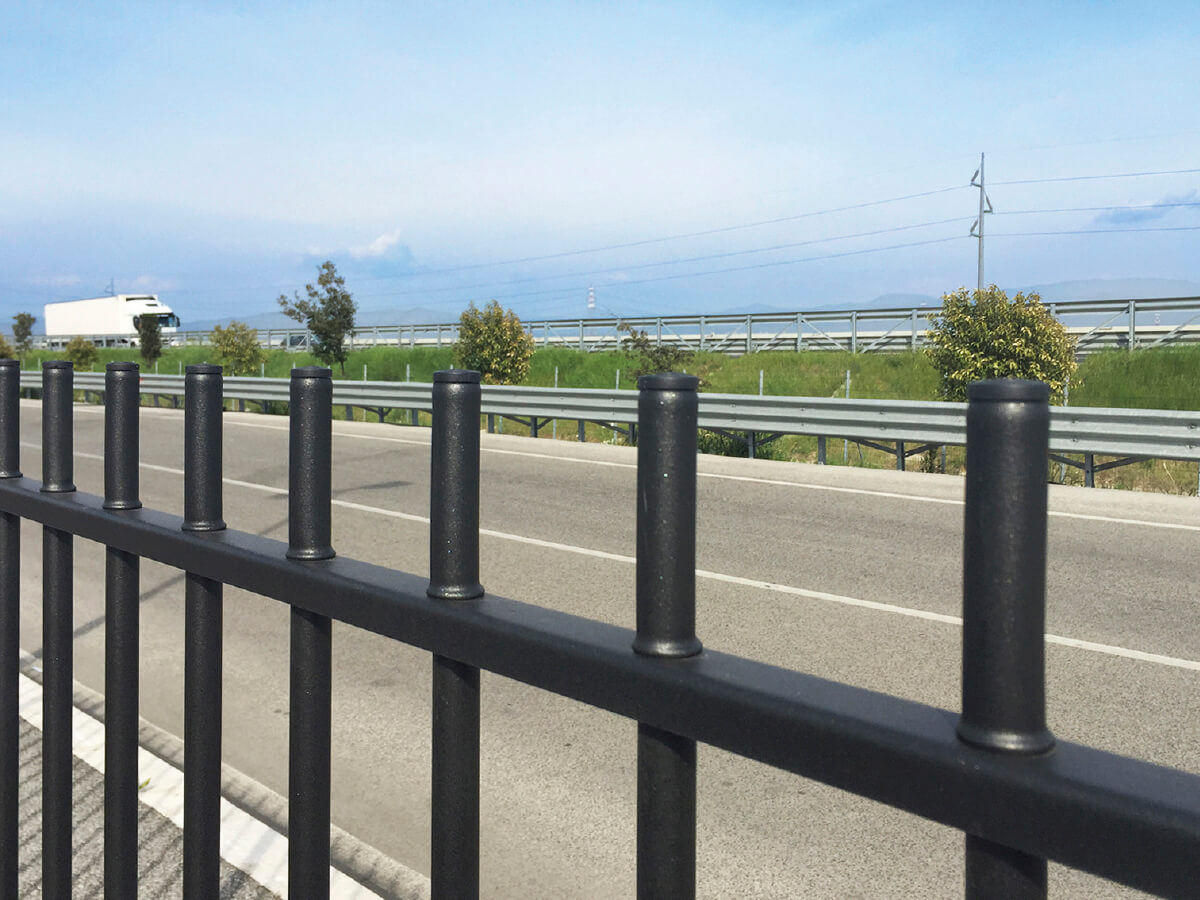

EKO fencing
EKOPROFESSIONAL:
is classified as the latest generation in fencing. It can be used in both a private and public environment due to its linear and simple appearance, however with robust and modern features.
DIAMETER:
lthe fencing is produced with 20 mm or 16 mm round posts and can have spears on the upper part.
FASTENING:
the panels have 40x40 mm tubular uprights with lower brackets for fastening with screws on the ground or on a low wall and have the upper finish with PP cap.
COLOUR:
he painting is carried out by using a thermosetting powder process. The standard colour is micaceous dark grey; it is possible to choose from other standard RAL colours.
Fencing

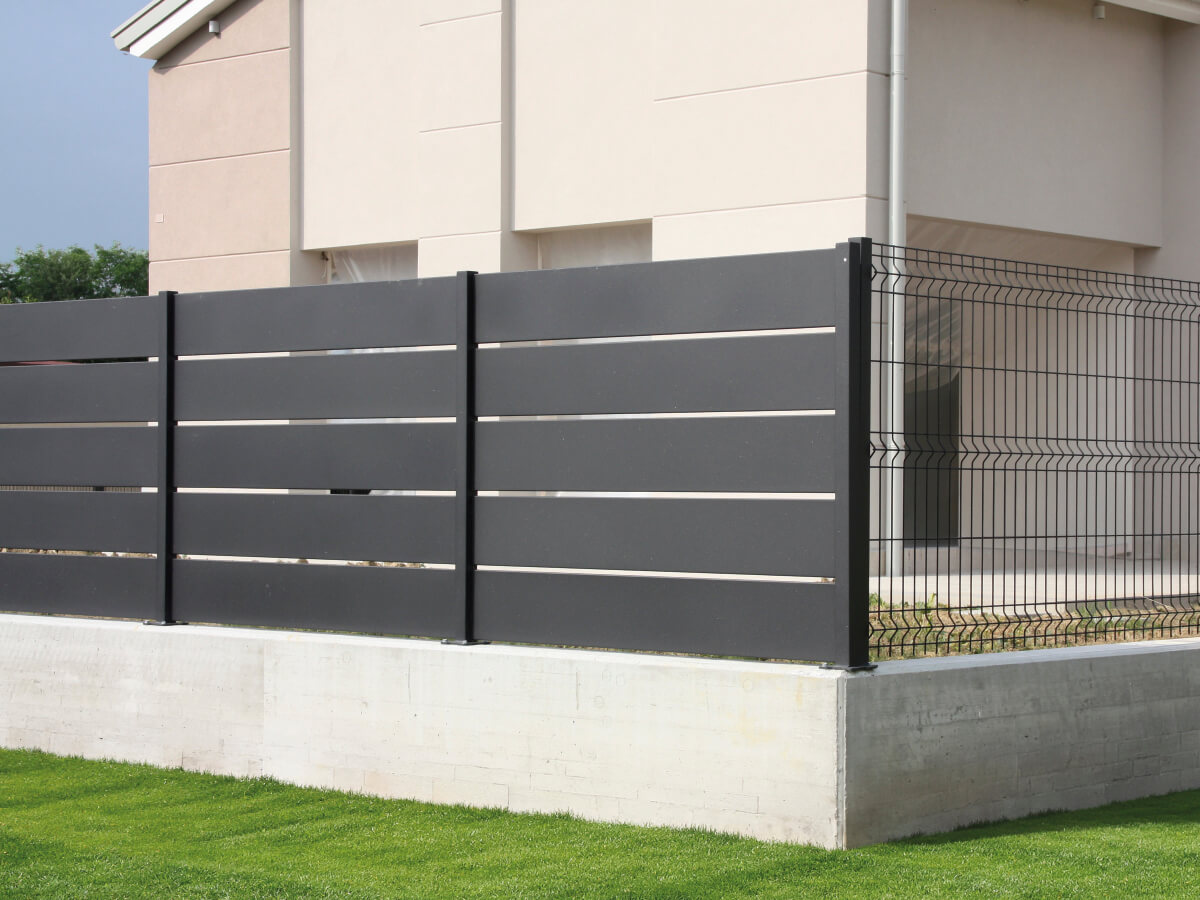

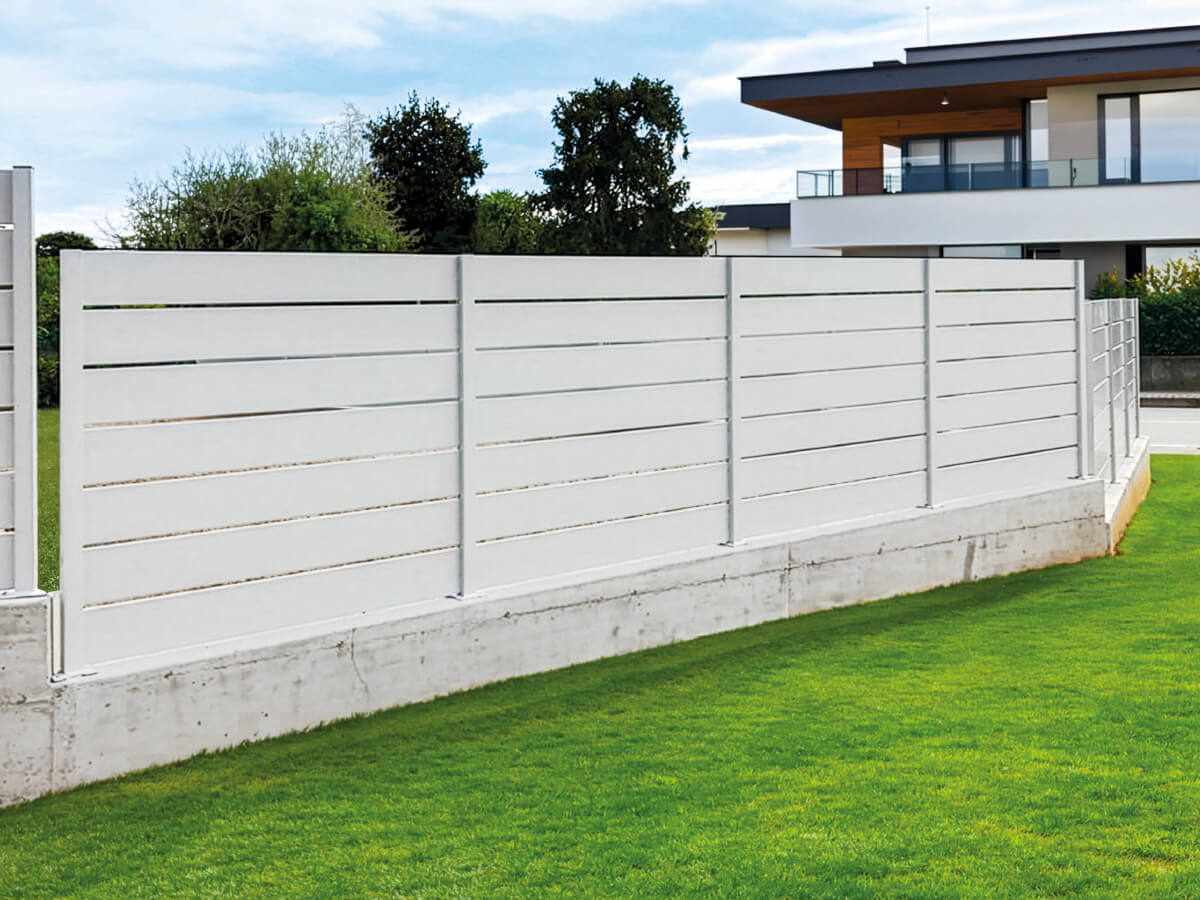

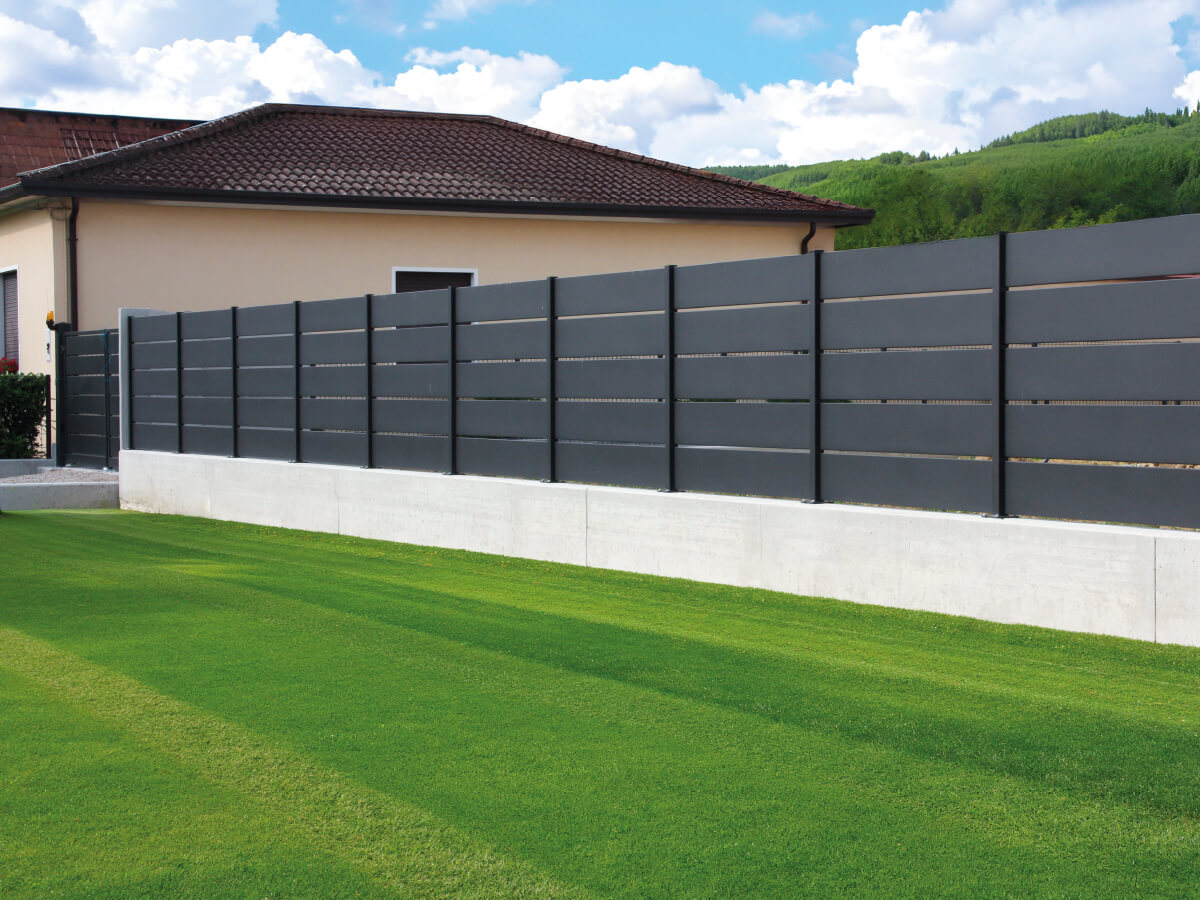

Slats
This type of modular fencing is developed with horizontal slats, with an elegant and modern design conceived to stylishly delimit your outdoor area while ensuring maximum privacy.
DIMENSIONS:
the slatted fence panel is 1450 mm long and is supplied in three different slat heights: 122 - 170 - 220 mm. Depending on the number of slats in the panel, the height of the panel will be: 980 - 1180 - 1475 mm.
FASTENING:
this fencing is available with uprights made of 50x50 mm pre-galvanised steel tube, equipped with a welded and drilled bottom plate for cement fastening. Installation is quick and easy, as the slatted panels are mounted to the uprights without the use of screws or bolts,. but with special pre-fitted fixing keys.
COLOUR:
the slatted fences are available in 4 standard colours:
- RAL 6005 green
- Micaceous dark grey
- RAL 9010 semi-gloss white
- RAL 7035 semi-gloss light grey
Fencing

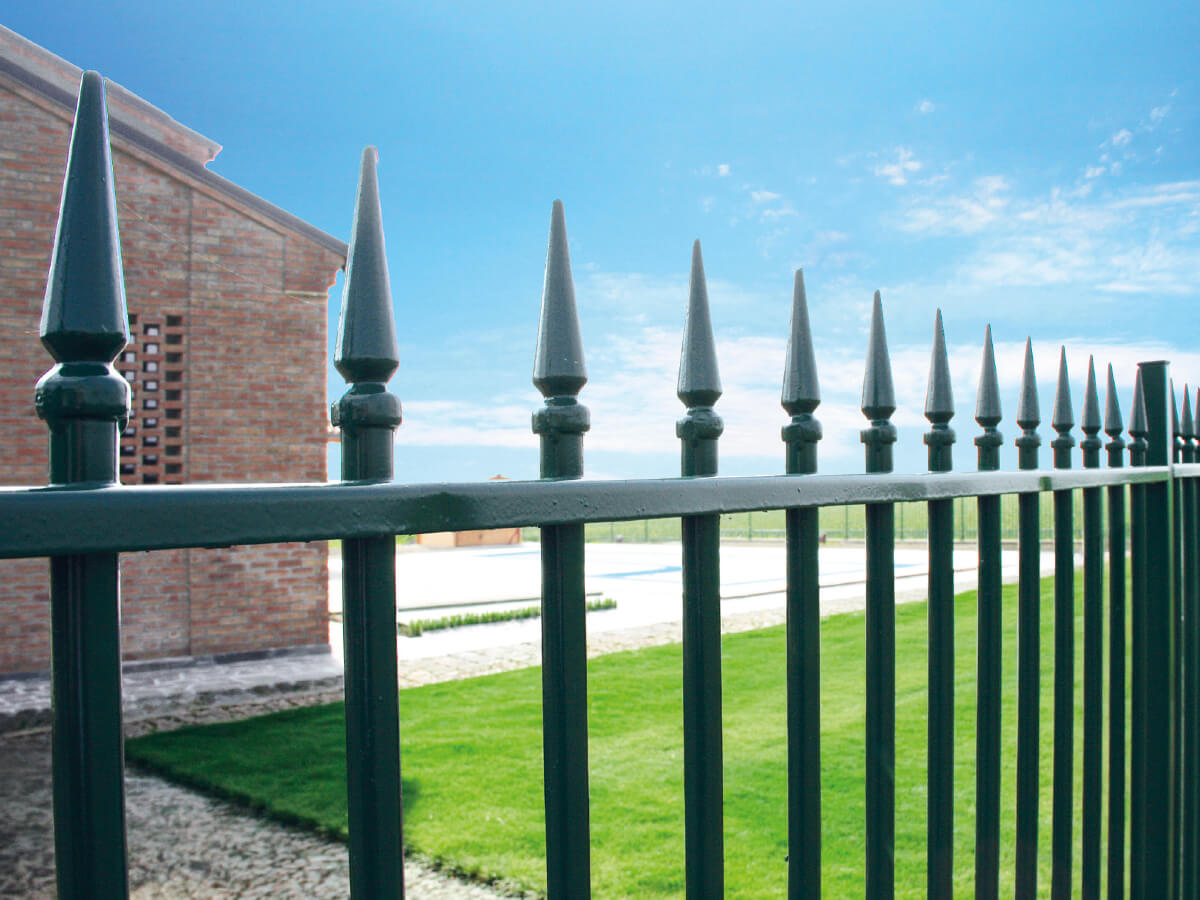

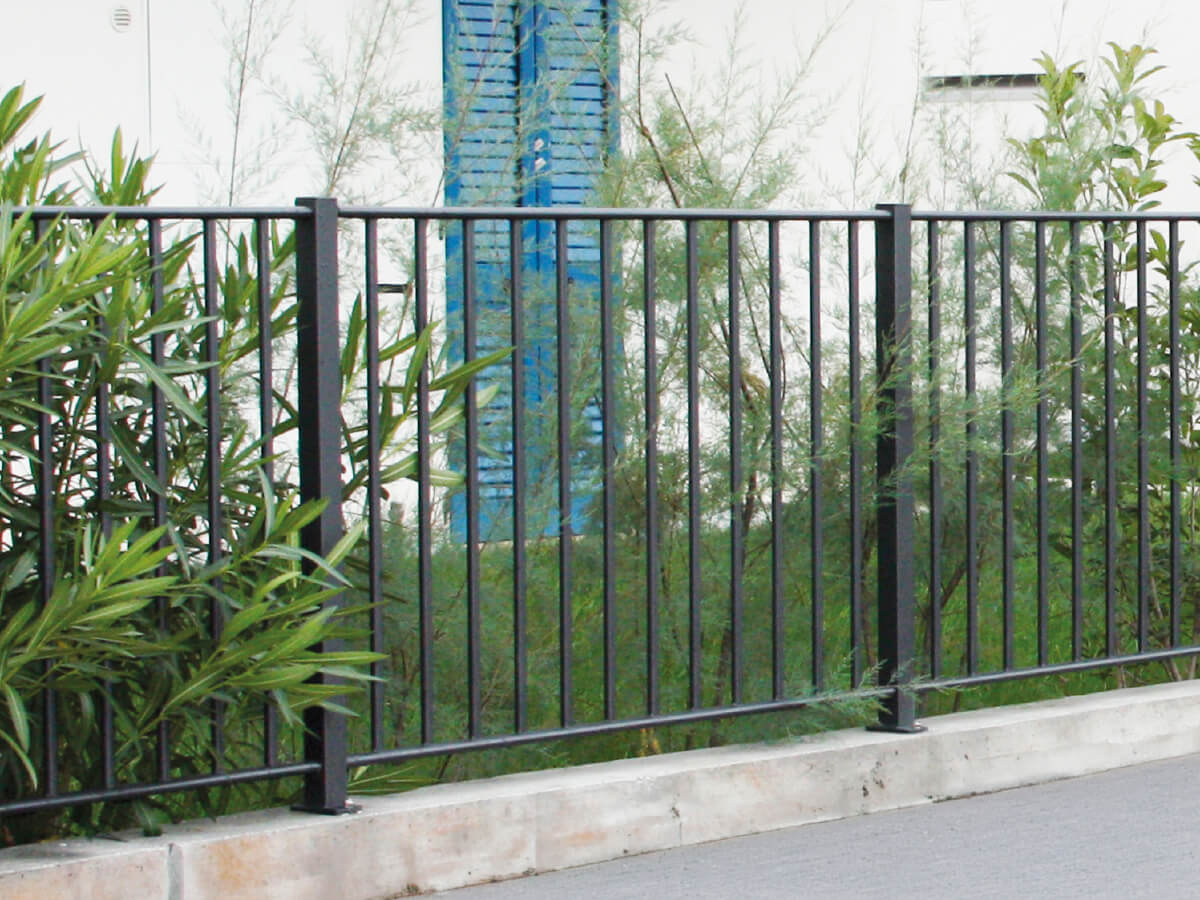

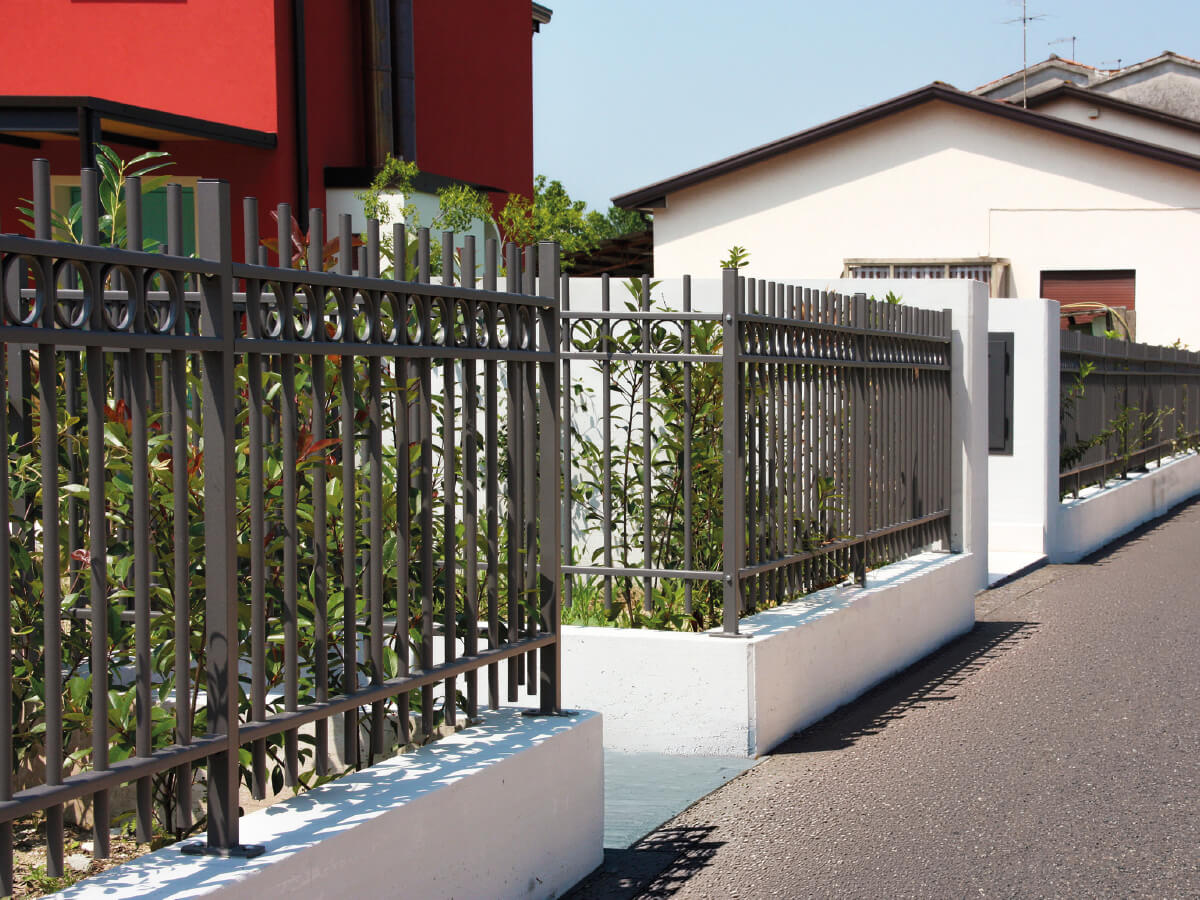

Tubular fencing with horizontal U profiles
FINISHES:
modular fencing with horizontal U profiles are the best alternative to the classic fencing we see in the building, civil and industrial field, because they are aesthetically imposing and robust.
DIAMETER:
this product can be made with round tube vertical profiles with the choice between 12 mm or 20 mm diameters, or square tube with 12x12 mm or 15x15 mm diameters.
FASTENING:
the panels have 35x35 mm tubular uprights with lower brackets for fastening with screws on the ground or on a low wall or upright to be cemented and can have the upper finish with PP cap or ball cap.
COLOUR:
all the material is hot galvanized according to the UNI EN ISO 1461: 2009 standard and painting is carried out by using a thermosetting powder process. The standard color is micaceous dark grey; other RAL colours are available.
Fencing

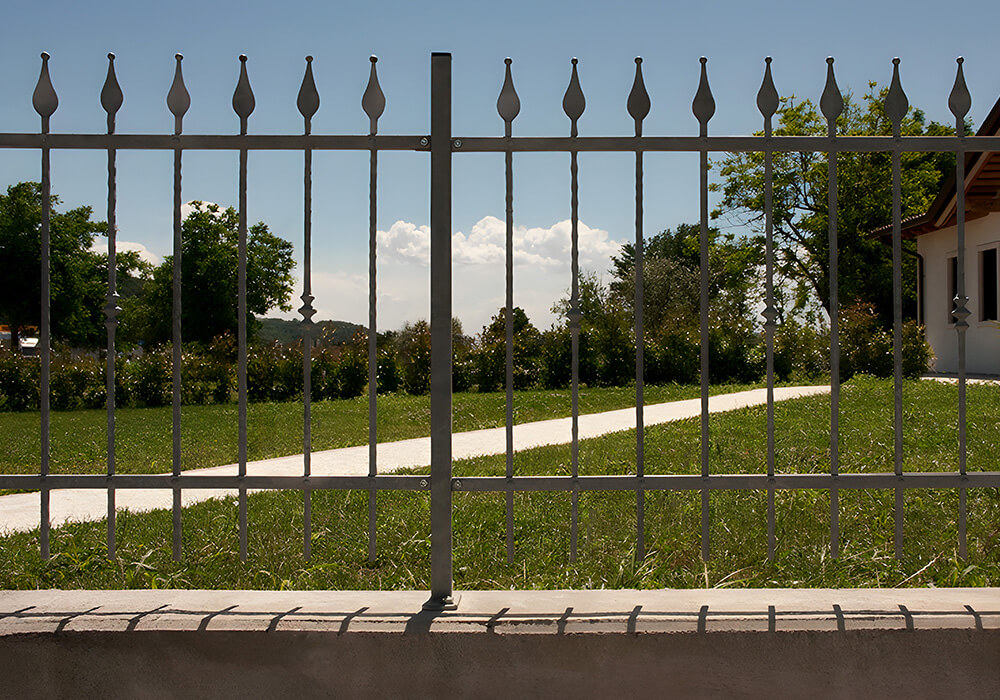

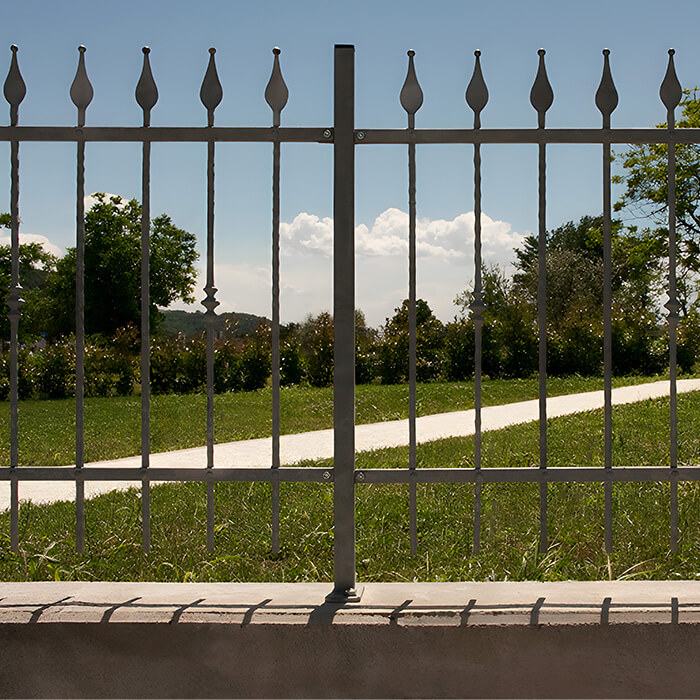

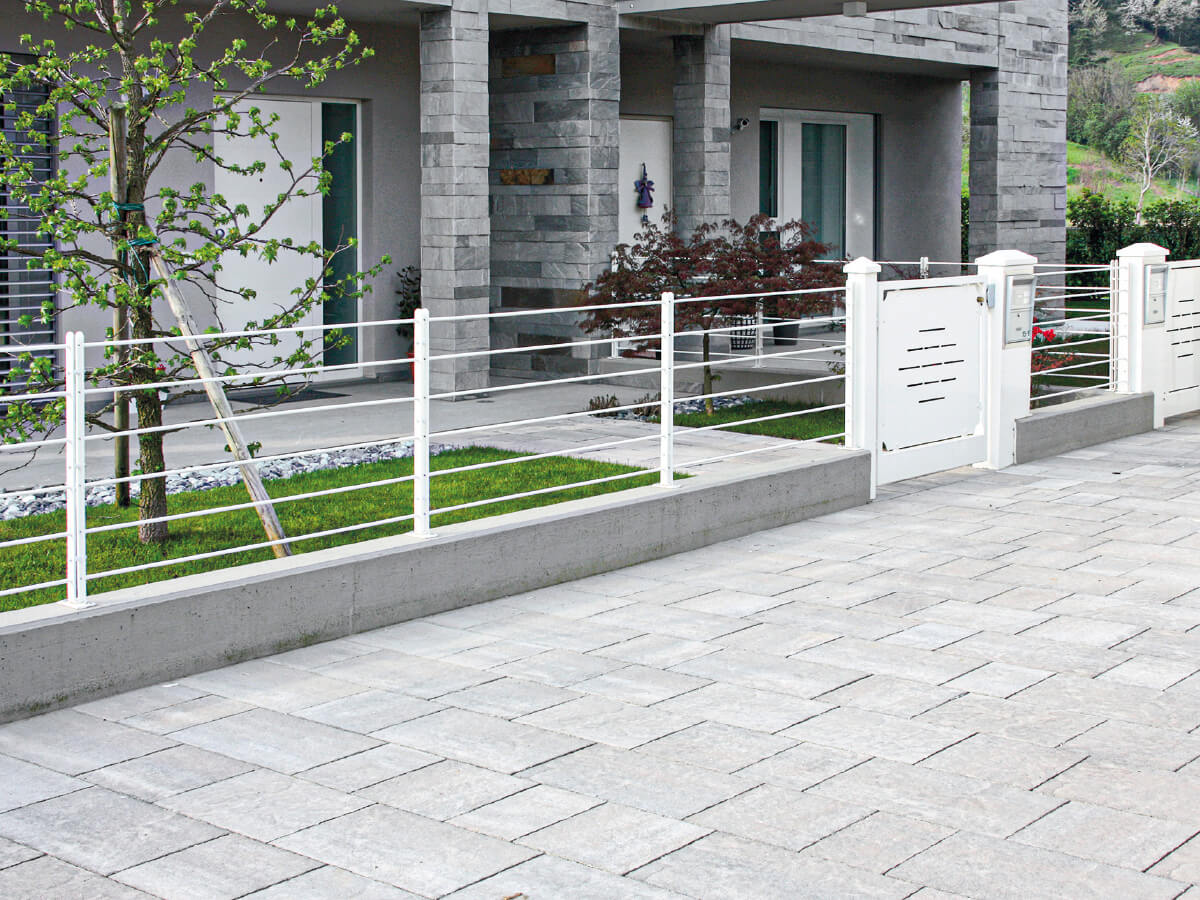

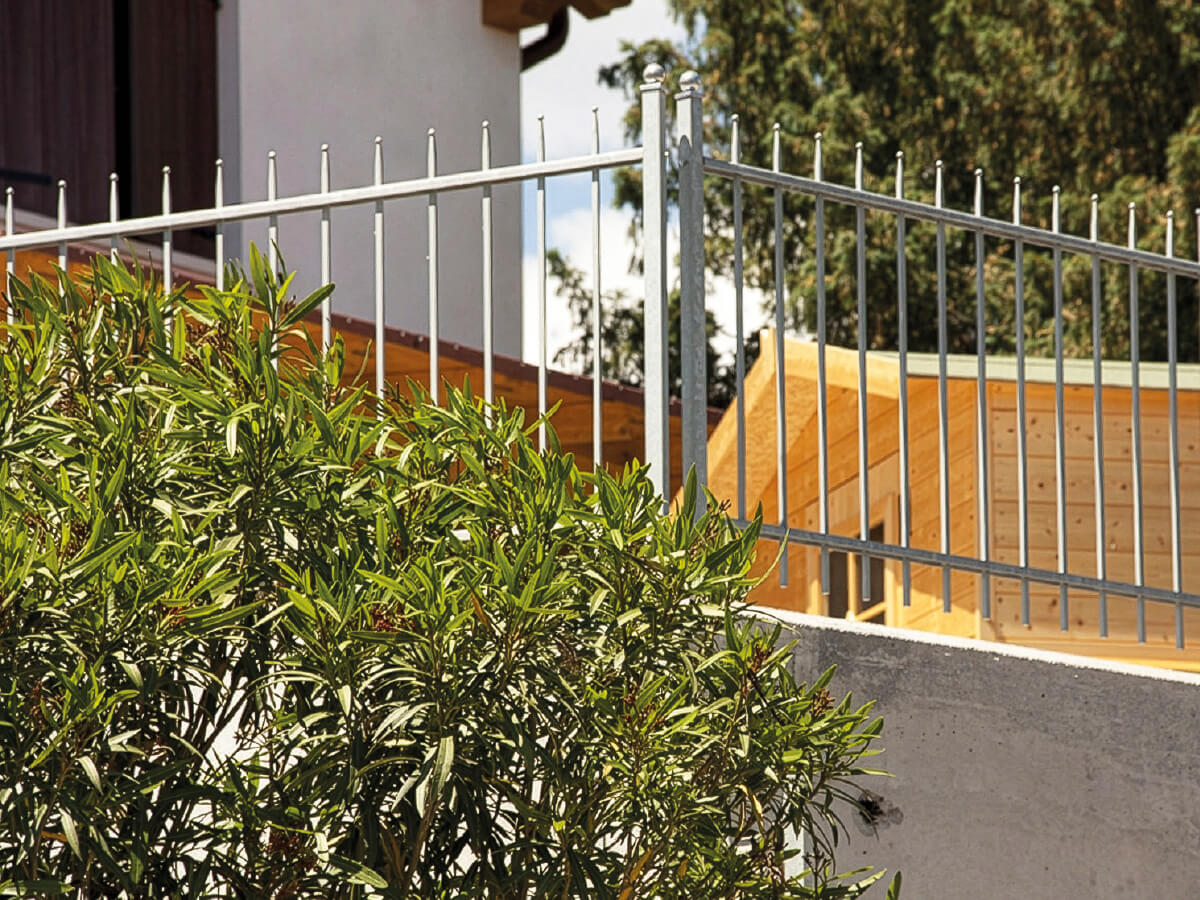

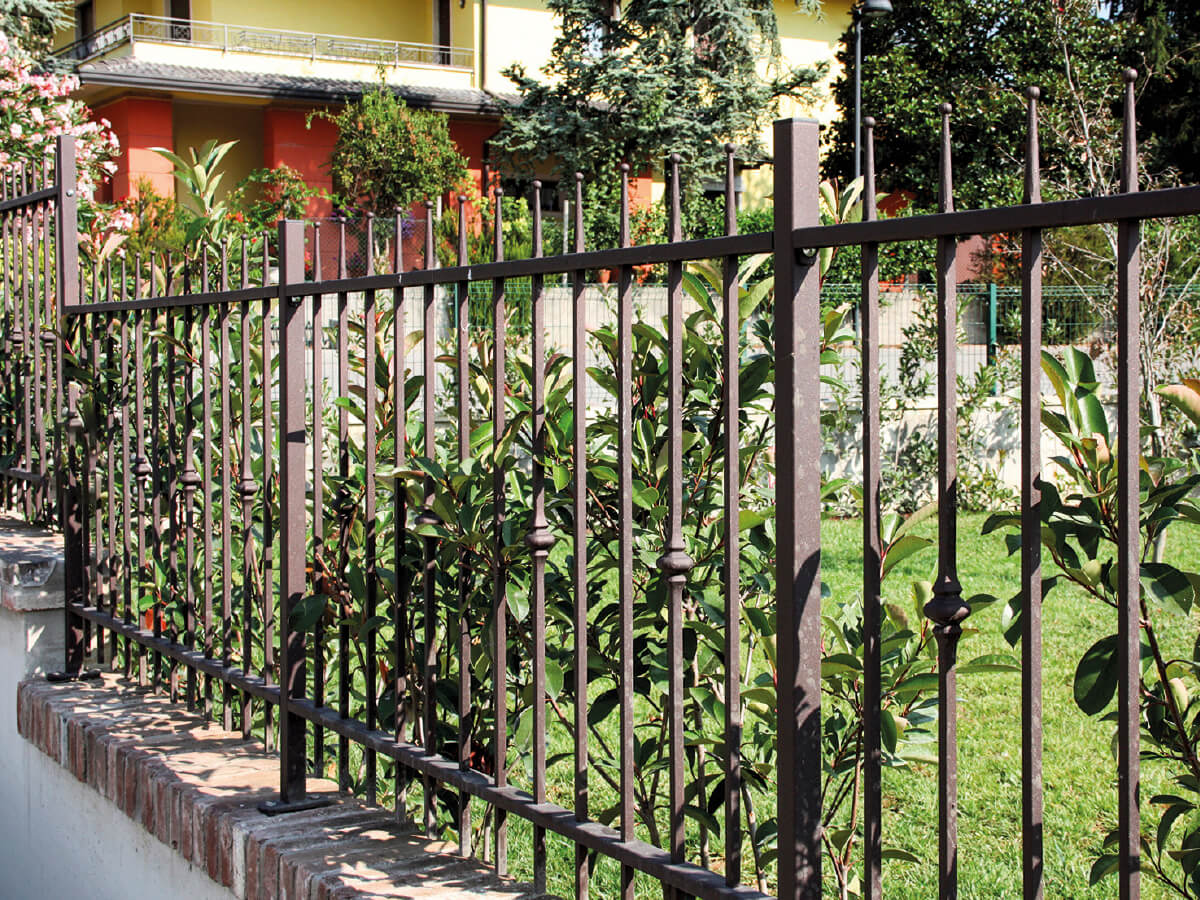

Fencing with smooth posts and horizontal U profile
FINISHES:
fencing with smooth posts and horizontal U profile are mostly used in civil residences as they have sober but at the same time artistic aesthetics; the horizontal profiles are cold produced with four folds on the corners to give maximum resistance to horizontal torsion.
DIAMETER:
the fencing is produced with 12x12 mm square posts or 12 mm diameter round posts and can have hot-forged central decorations and spears in the upper part.
FASTENING:
the panels have 35x35 mm tubular uprights with lower brackets for fastening with screws on the ground or on a low wall and can have the upper finish with PP cap or ball cap.
COLOUR:
all the material is hot galvanized according to the UNI EN ISO 1461: 2009 standard and painting is carried out by using a thermosetting powder process. The standard colour is micaceous dark grey; other RAL colours are available.
Fencing

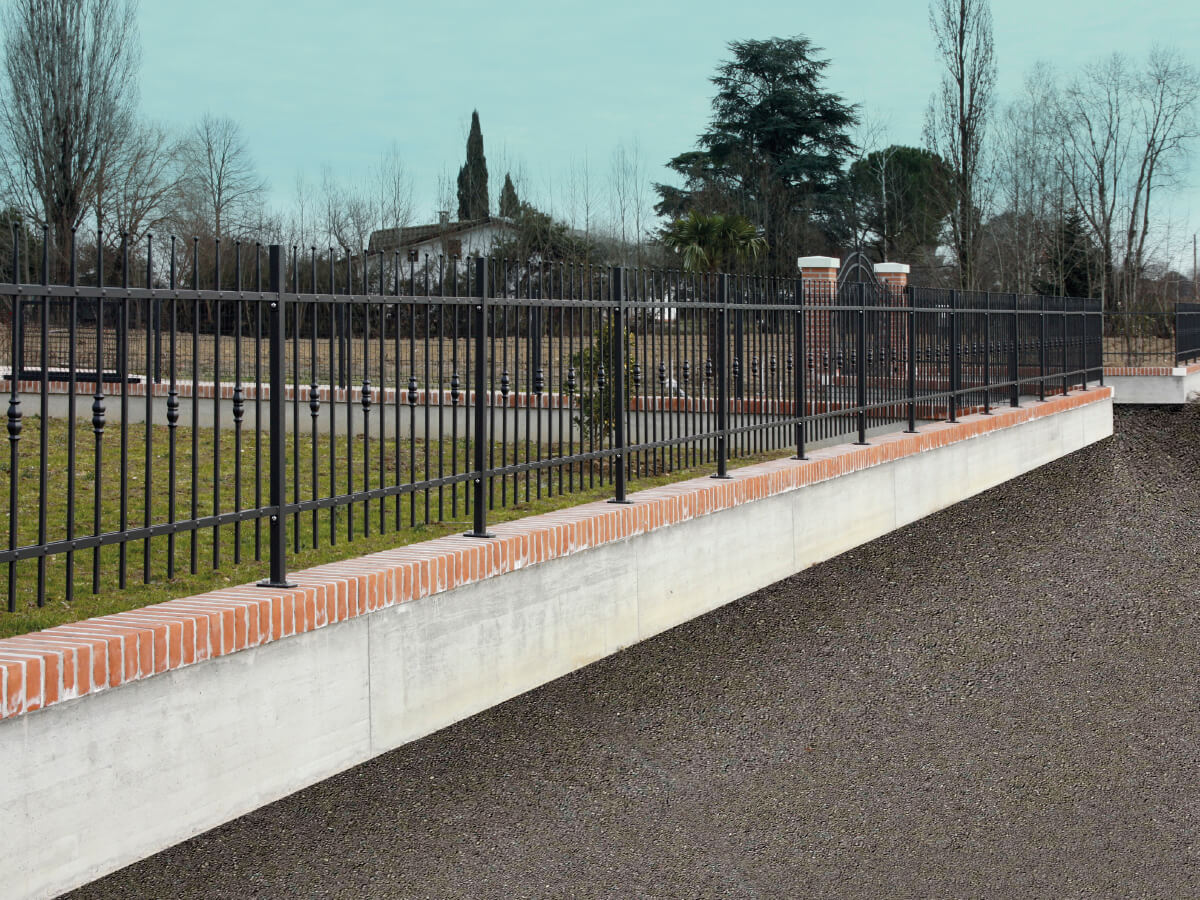

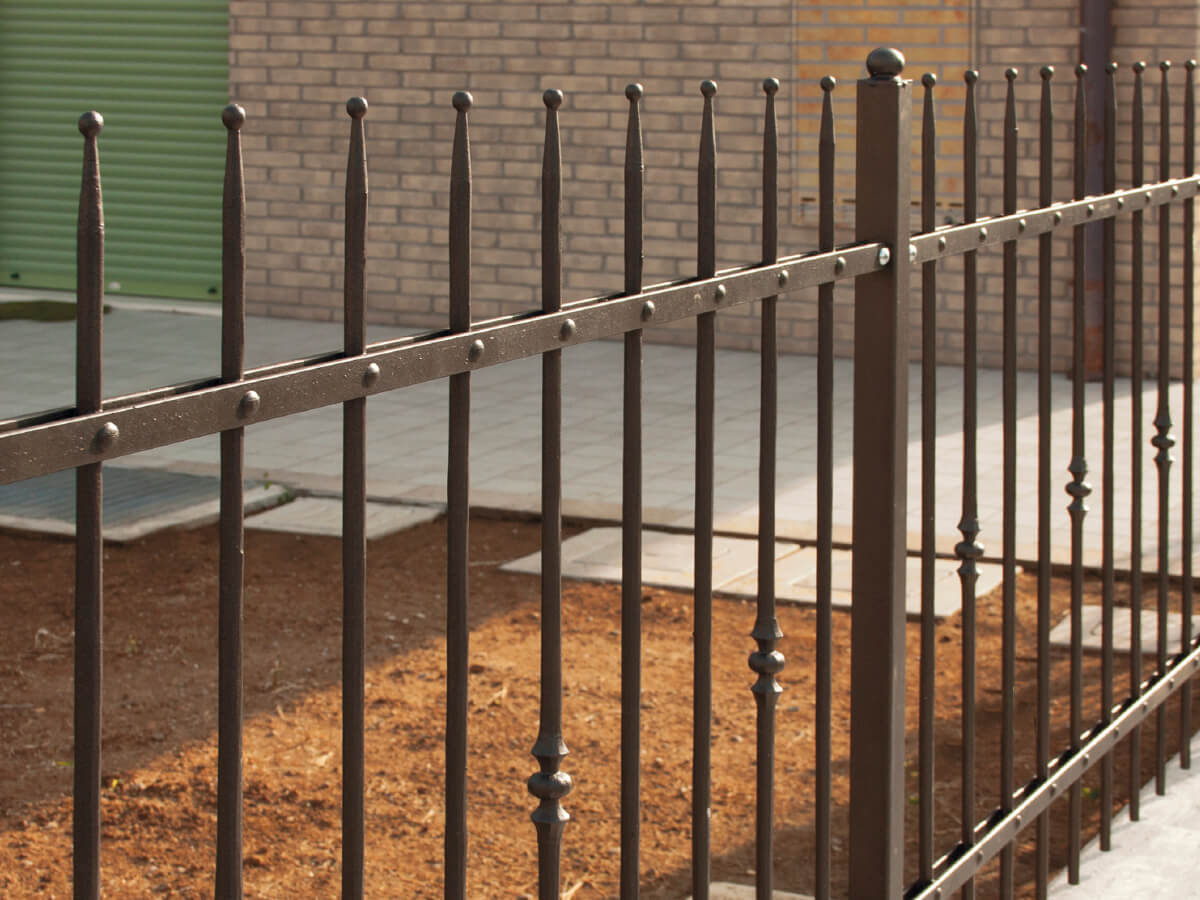

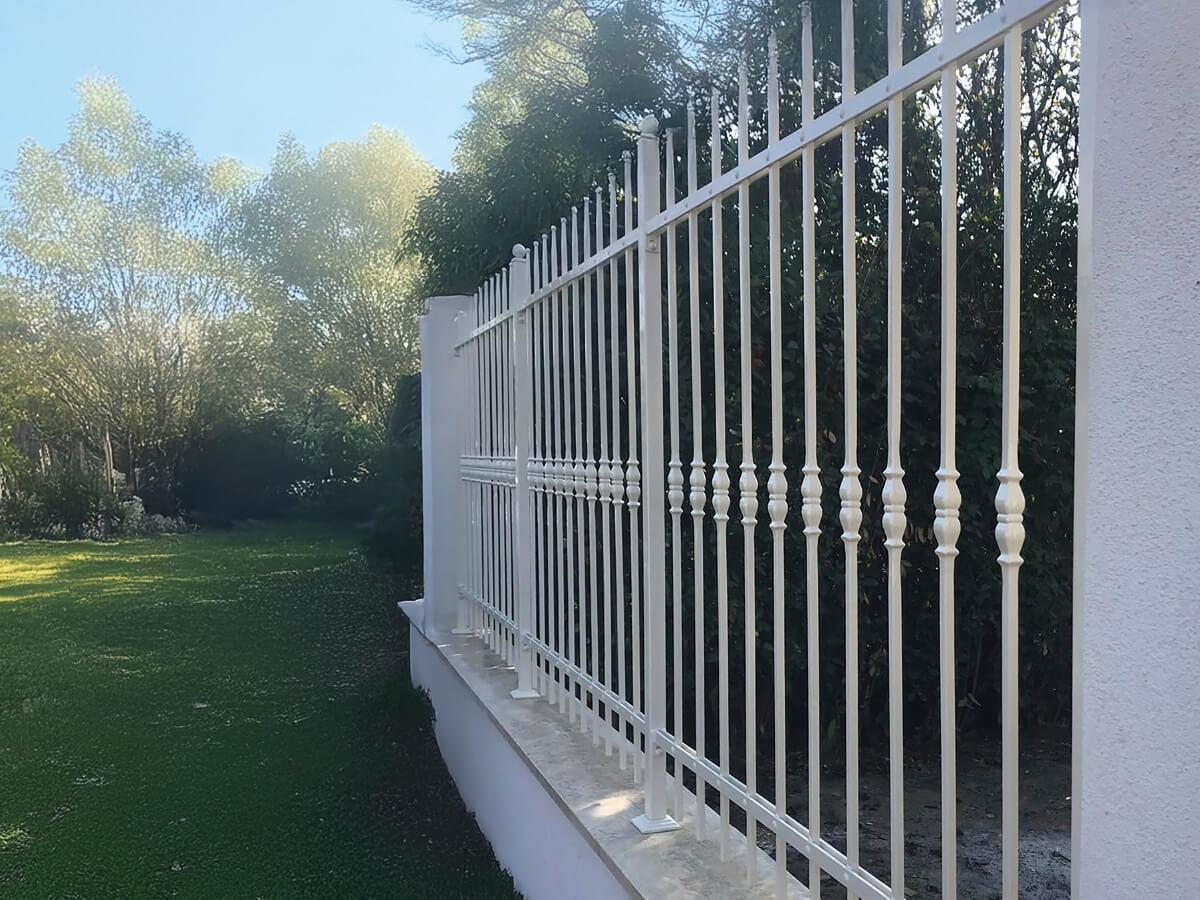

Artistic fencing with horizontal double flat bars
FINISHES:
Artistic fencing with horizontal double flat bars recalls the style of artisan fencing. Proposed with 12x12 mm smooth square posts with the possibility of having hot-forged central decorations and spears in the upper part. The horizontal profiles are made of 25x5 mm double flat bar.
FASTENING:
the panels have 35x35 mm tubular uprights with lower brackets for fastening with screws on the ground or on a low wall. They can have the upper finish with PP cap or ball cap.
COLOUR:
all the material is hot galvanized according to the UNI EN ISO 1461: 2009 standard and painting is carried out by using a thermosetting powder process. The standard colour is micaceous dark grey; other RAL colours are available.
Fencing

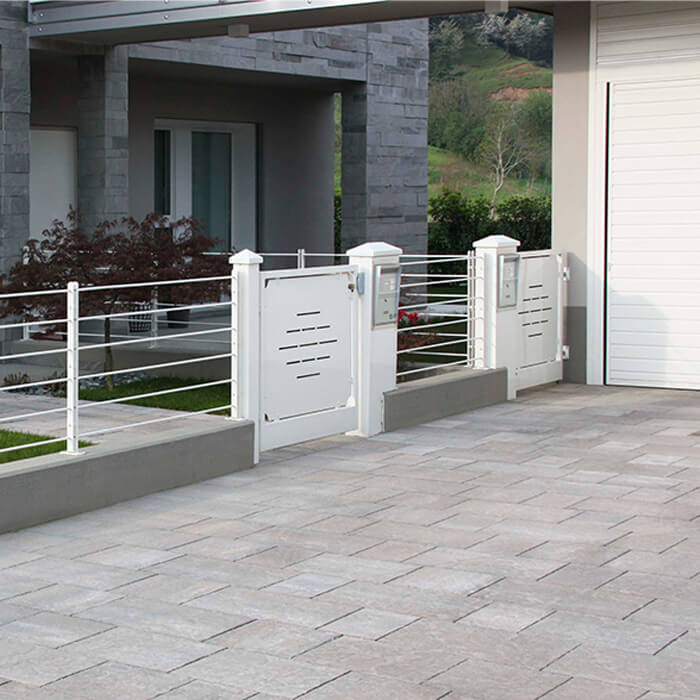

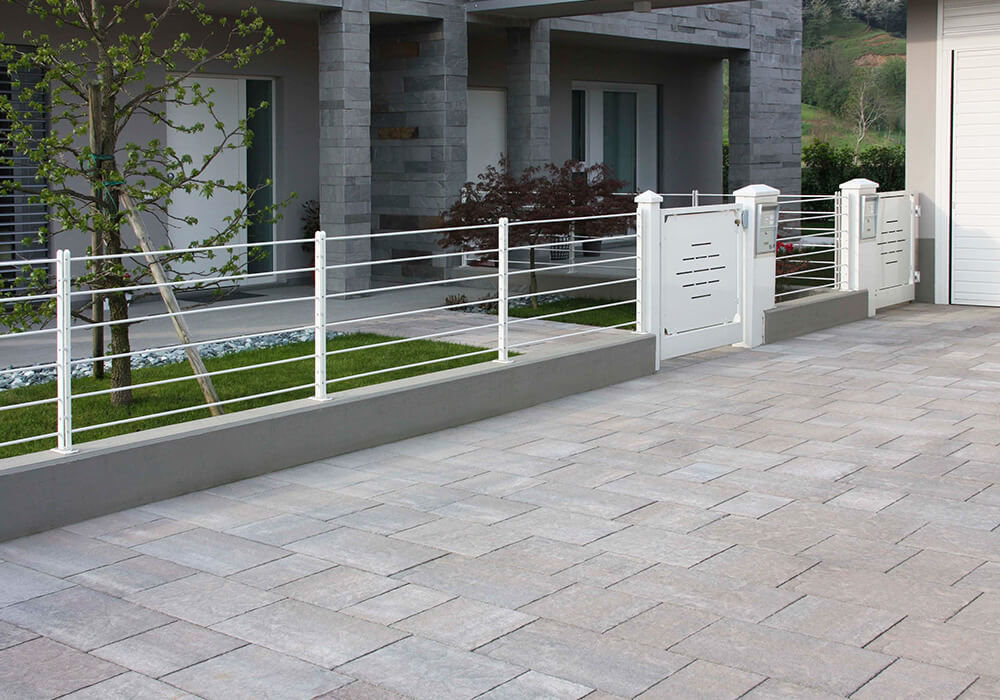

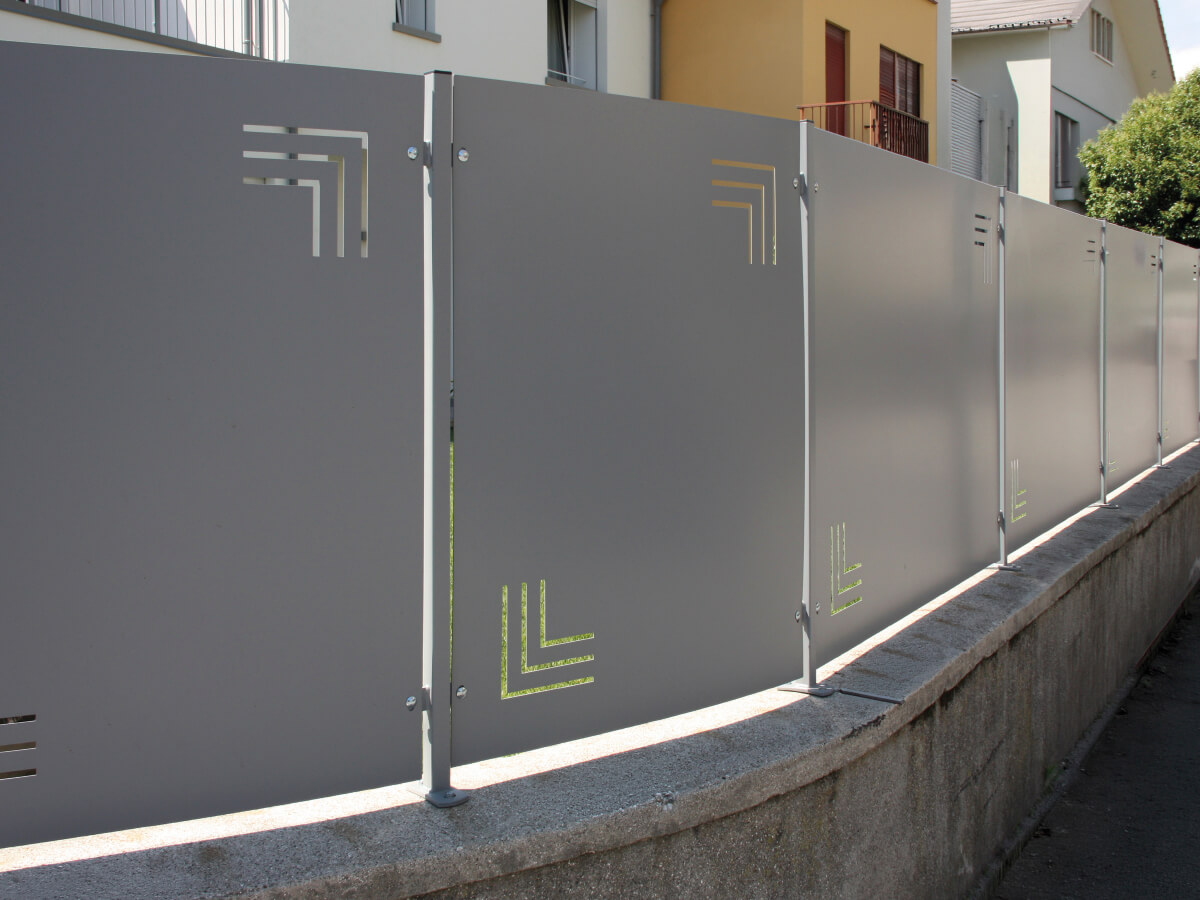

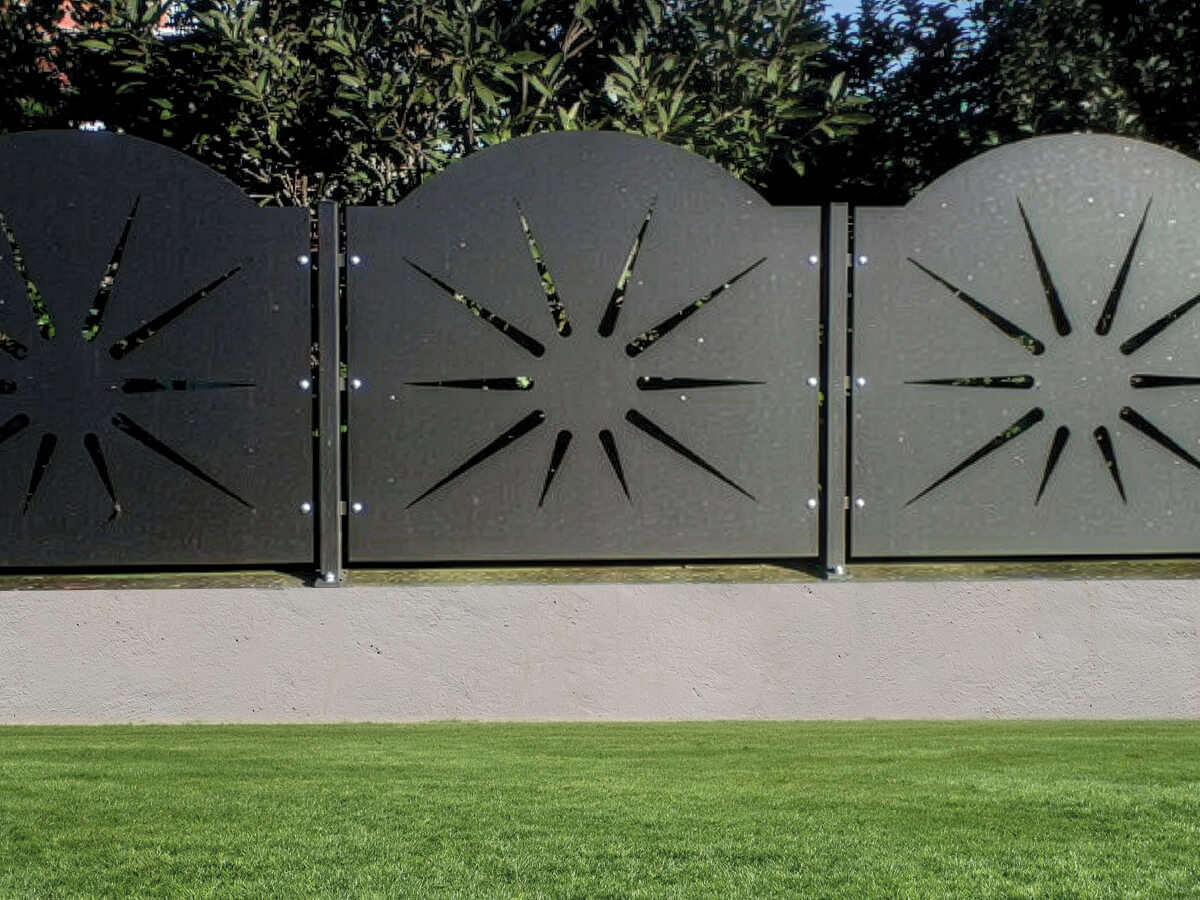

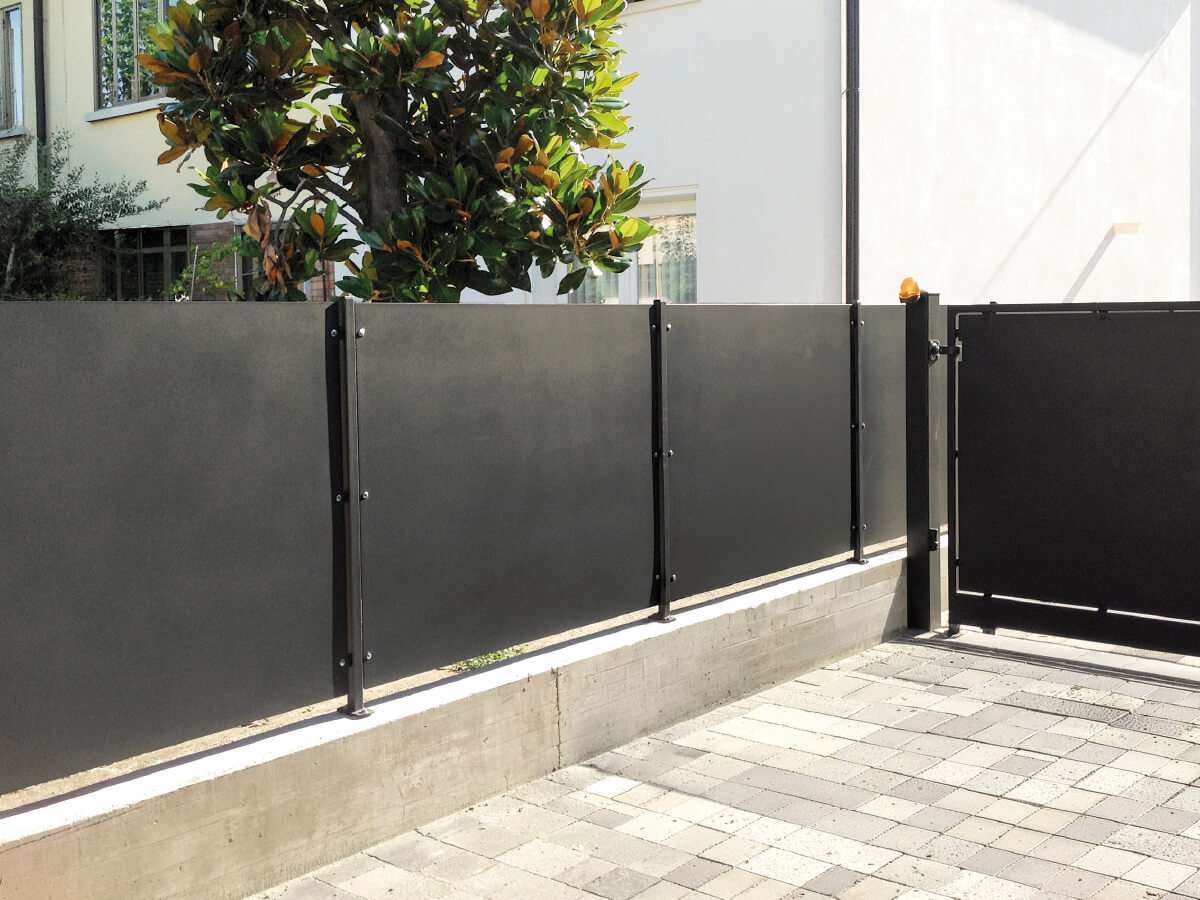

Screen-printed fencing
Fencing with screen-printed sheet metal panels is available in 5 design varieties or in a complete privacy version. This fencing is highly appreciated for its modernity and simplicity and integrates well with the latest architectural trends. In addition, the screen-printed sheet metal panels offer an extremely high level of privacy without the need for additional measures.
DIMENSIONS:
the panels are 1455 mm long and are available in two different heights.
FASTENING:
the panels are equipped with 35x35 mm tube uprights with lower brackets for cement fastening.
COLOUR:
all materials are hot galvanised in accordance with UNI EN ISO 1461:2009 and painted using a thermosetting powder process. The standard colour the fencing is available in is micaceous dark grey.
Fencing

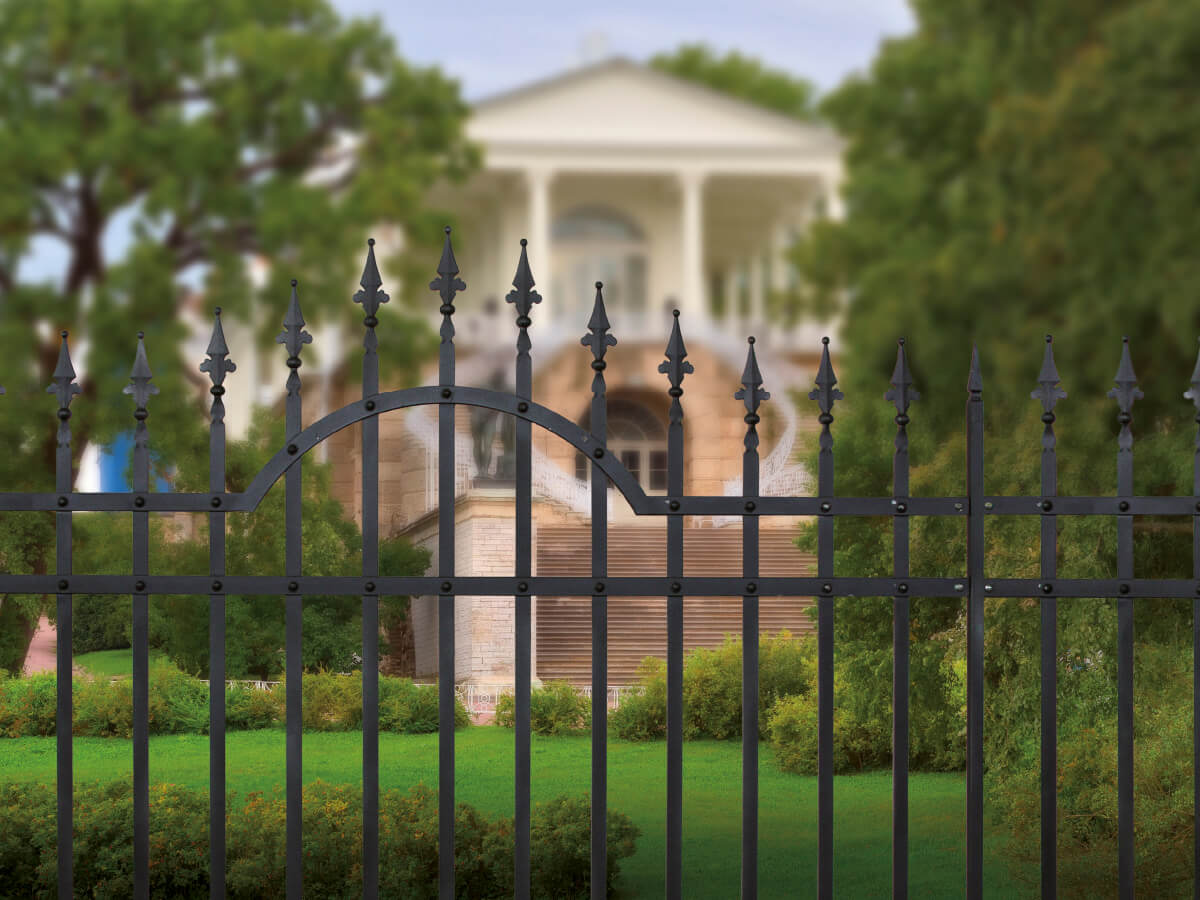

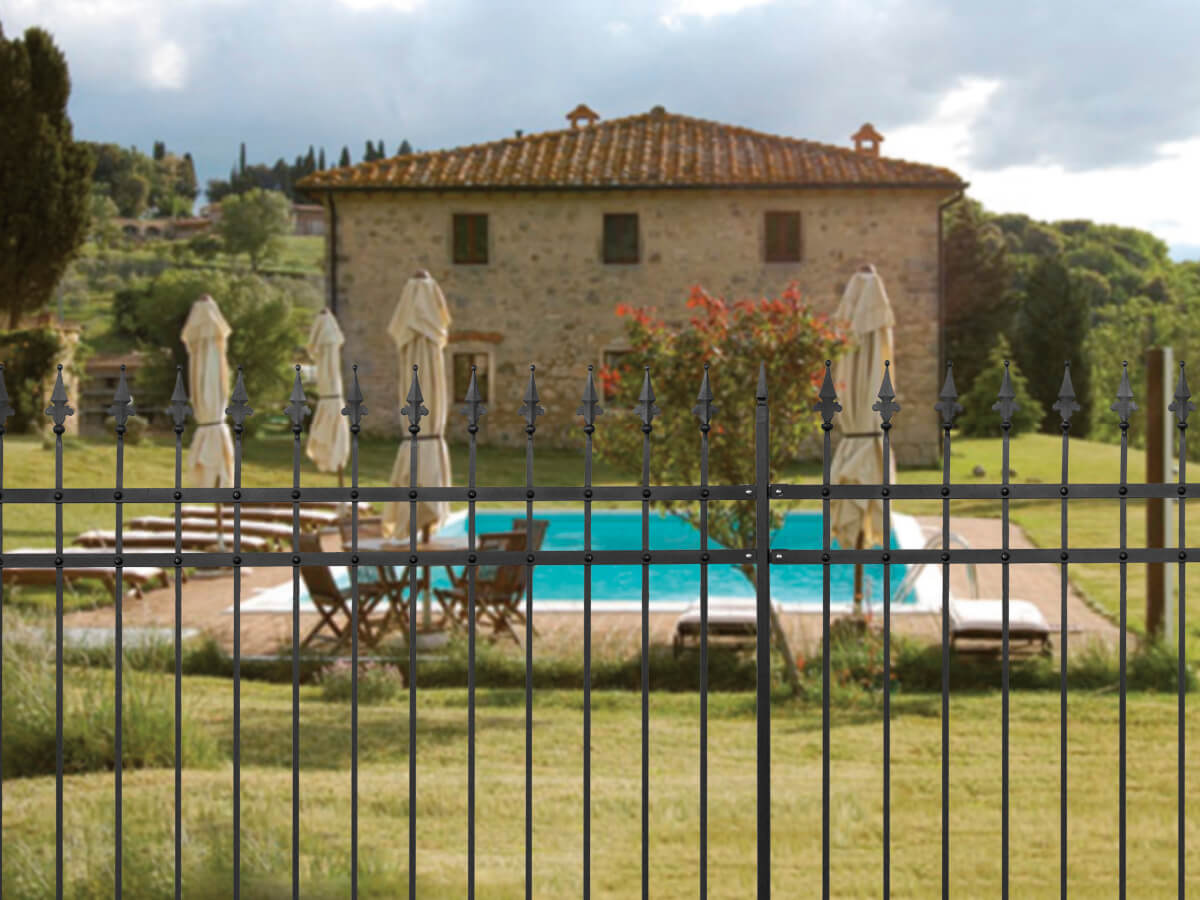

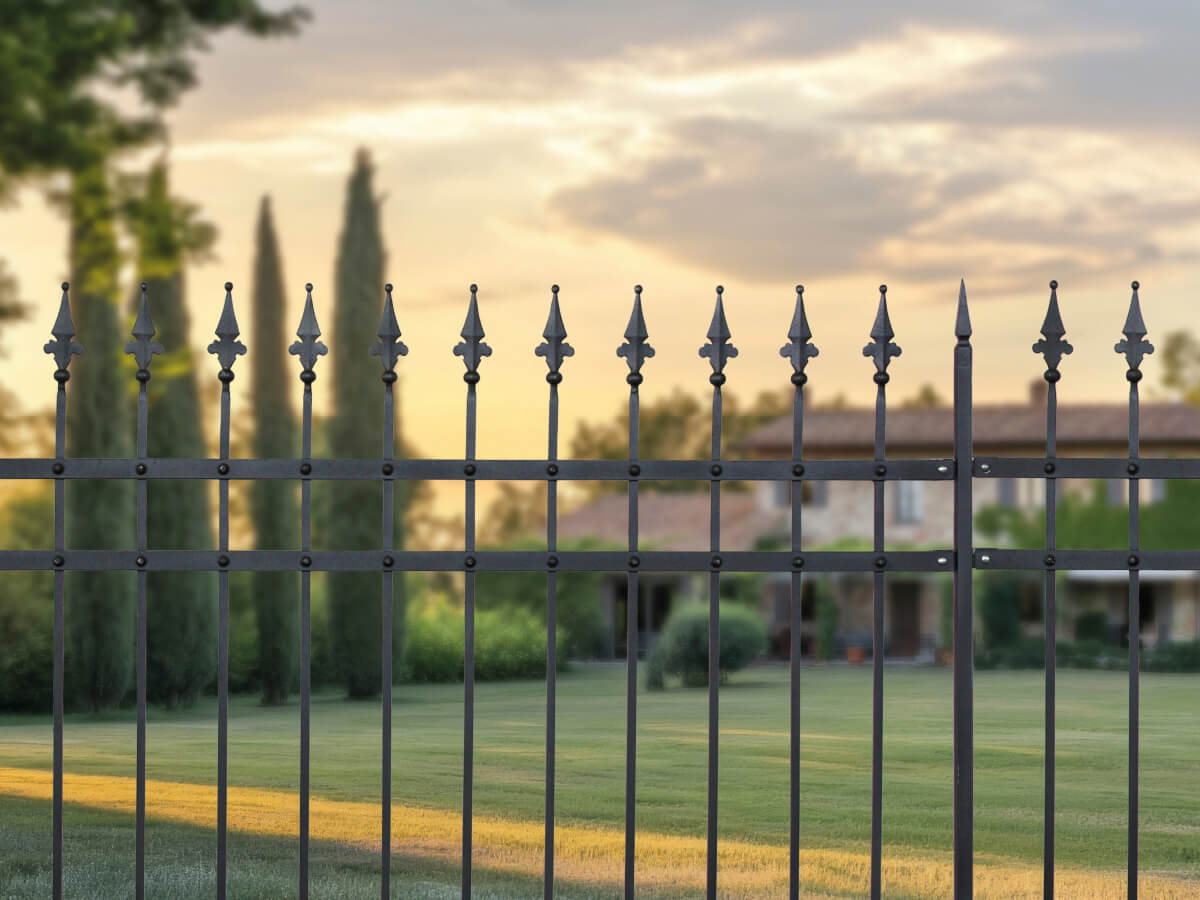

1800s style fencing
FINISHES:
the resemblance to the ancient Venetian villas is evident. This product can be made of 30x6 mm or 16x8 mm flat bar with forged spear in the upper part; the horizontal profiles are of round head riveted 35x6 mm double flat bar and are proposed in two solutions: one to form an arch and the other linear.
FASTENING:
the panels are equipped with 35x35 mm tube uprights assembled by sinking and have the upper finish with hot-forged tips.
COLOUR:
all the material is hot galvanized according to the UNI EN ISO 1461: 2009 standard and painting is carried out by using a thermosetting powder process. The standard colour is micaceous dark grey; other RAL colours are available.
Fencing

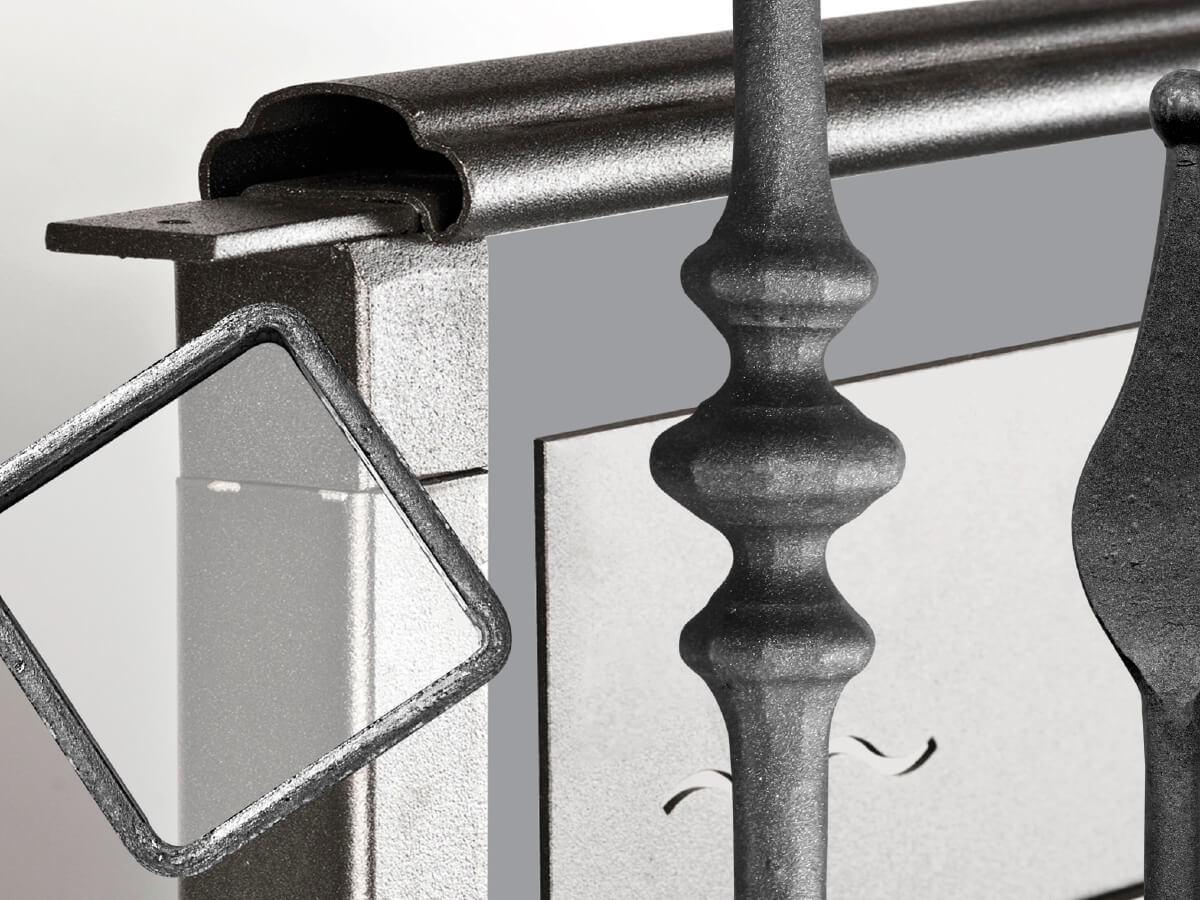

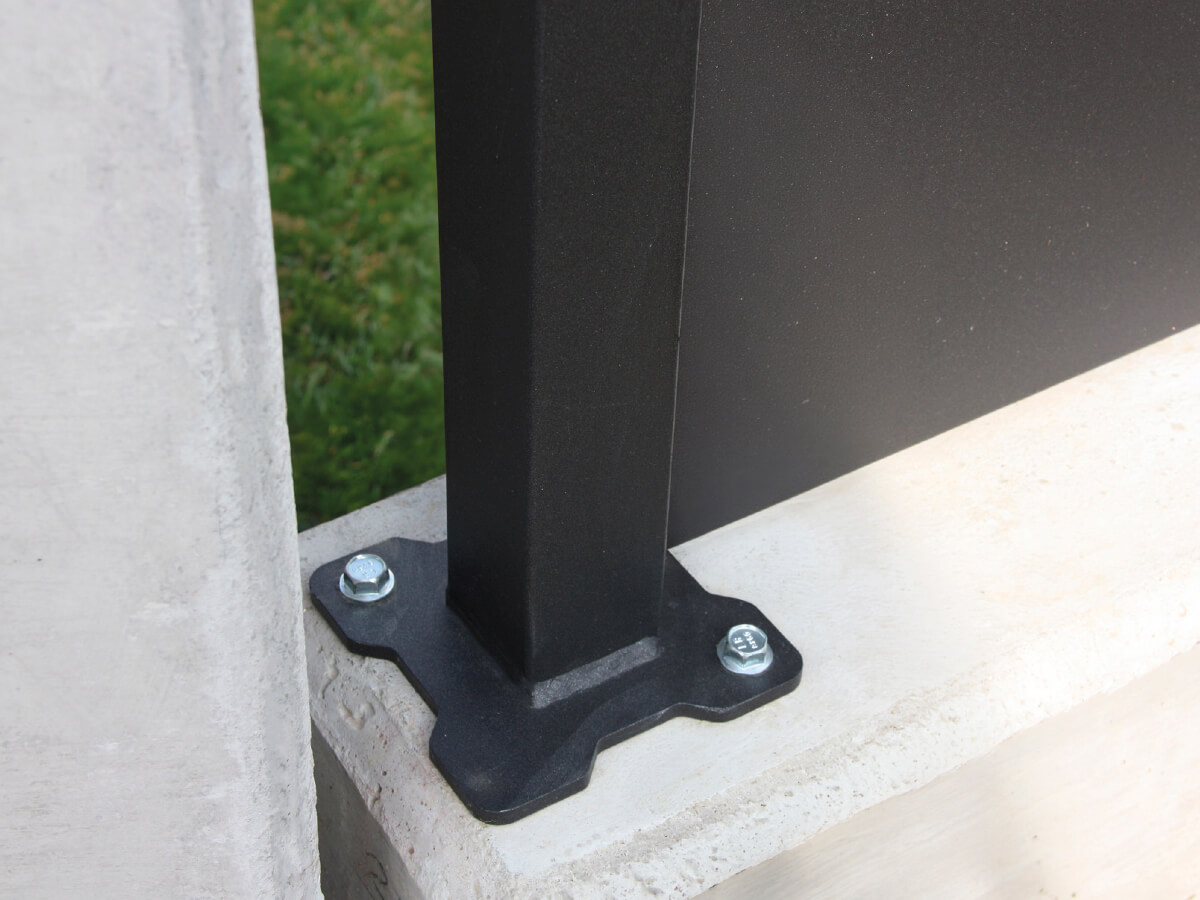

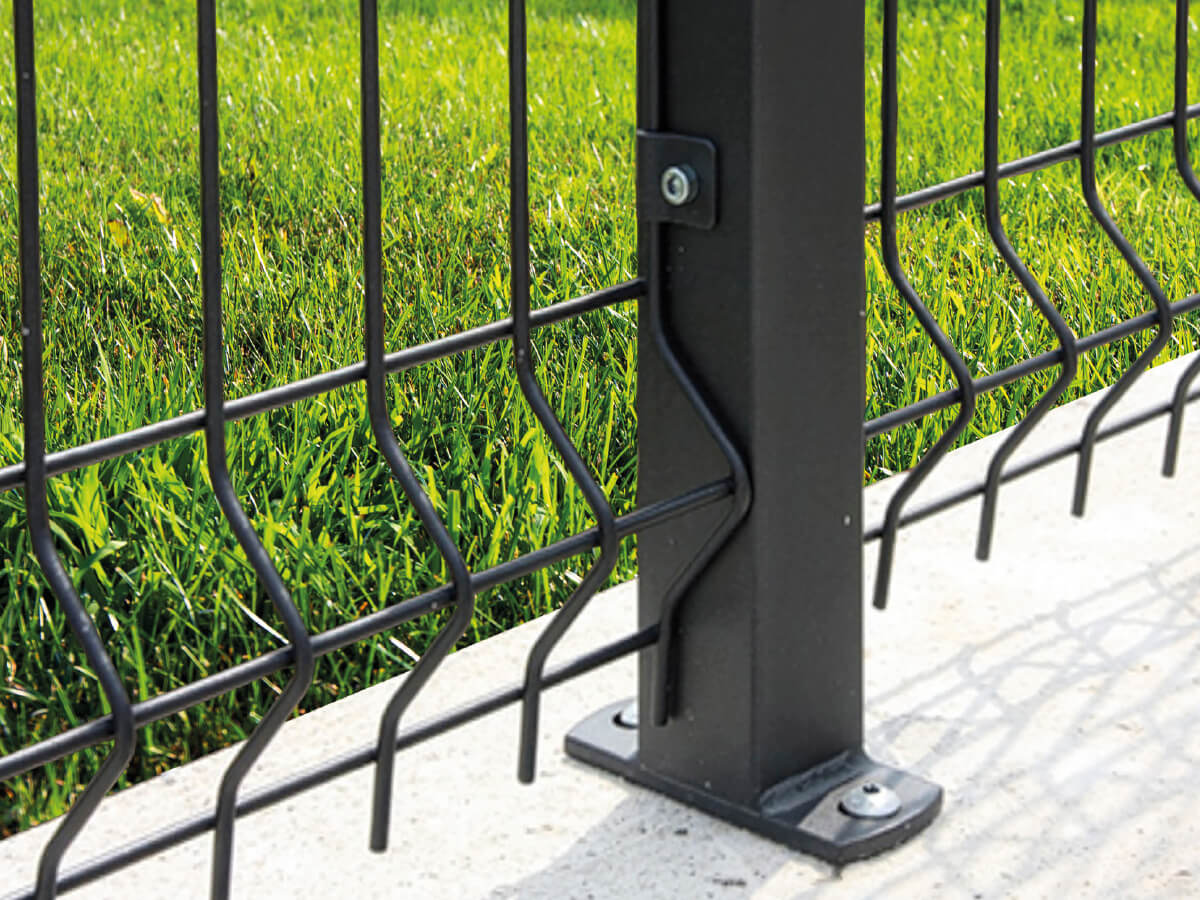

Uprights, accessories and components
UPRIGHTS:
they are produced in 35x35 mm or 50x50 mm tube with 120x60x8 mm lower brackets for fastening through screws on the ground or on a low wall. They can have the upper finish with PP cap or ball cap.
COLOUR:
all the material is hot galvanized according to the UNI EN ISO 1461: 2009 standard and painting is carried out by using a thermosetting powder process. The standard colour is micaceous dark grey; other RAL colours are available.
